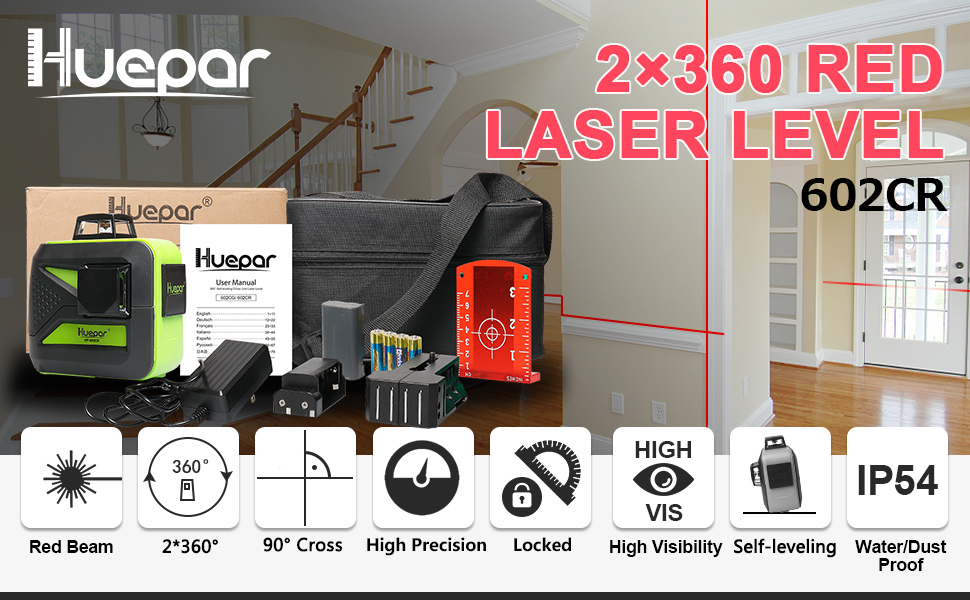

Huepar 602CR - Red Beam 2 X 360° Cross Line Alignment Self-Leveling Laser Level with Magnetic Pivoting Base

Sale price€99,99
Sold out

Shipping calculated at checkout

SKU: 602CR
Select Option:602CR
Members Only: Free 2-Year Membership Warranty: Huepar Care - Free 2-Year Membership Warranty * 1
  • Fast-Delivery Guarantee
    24 Months Official Warranty
    14-Day Returns

American Express Apple Pay Diners Club Discover Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa
Fraud Prevention: Your Payment is Safe & Secure.
  • FULLY LAYOUT WITH 2 X 360 LINE LASERS- One 360° horizontal and One 360° vertical planes enable users to measure and mark all around the room. Horizontal line and vertical line cross at 90°angles makes user quickly visualize and finish square layout. This 360 laser level is a complete level tool as well as an alignment laser aids in in full room layout.

  • TRIPLE POWER TECHNOLOGY- This laser level home hardware employed the included large capacity lithium battery (can be purchased easily at local market) for extended run-time, or with 4 AA alkaline batteries. In addition, this laser tool can be used at job site with direct input charging even if take out the battery. Charging protection help prevent the tool from overcharge. 4 battery indicators on keypad allow users to know the current battery volume anytime.

  • MULTIFUNCTIONAL MODE- The horizontal and vertical 360° laser lines can be switched individually or together. With our smart pendulum system, this laser level tool self levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.

  • POWER-SAVING OUTDOOR PULSE MODE- This laser level home hardware projects bright red beam with a working range up to 80Ft with +/- 1/9" at 33Ft accuracy. Besides highly visible red beam, a power-saving pulse mode extends laser range up to 200Ft with Huepar LR-5RG Line Laser Receiver in bright light or outdoor conditions and continuous working time.

  • DURABLE DESIGN & WARRANTY- Over-molded metal laser window with IP54 water/dust resistance ensures you work well in hazardous working conditions. The laser also offers 1/4"-20 and 5/8"-11 mounting threads to suit different tripod threads. Strong magnetic pivoting base allows for attachment to metal track and steel. 12 months limited warranty up to 24 months if become a royal member through product registration.



laser level home hardware


Huepar 602CG Laser Level Specifications:

  • Laser Class: Class 2 (IEC/EN60825-1/2014), output power <1mW
  • Laser Wavelength: 635-660nm
  • Leveling Accuracy: ± 1/9 Inch at 33 Feet
  • Horizontal/Vertical Accuracy: ± 1/9 Inch at 33 Feet
  • Leveling/Compensation Range: 4°±1°
  • Working Distance: 85Ft (100 LUX), 165Ft with Huepar Line Laser Receiver
  • Operating Time with Lithium Battery: 12 hours with all laser beams on
  • Operating Time with AA Batteries: 7 hours with all laser beams on
  • Power Source: Li-ion battery&4×˝AA˝ (LR6) batteries
  • Operation Temperature Range: 14℉ ~ 113℉ (-10℃~ 45℃)



laser level home hardware application


Three kinds of circuit switching functions:

  • This professional cross-line laser includes vertical, horizontal and cross-line modes, which can project two lines independently or together. The Huepar 602CR has a manual mode that allows the user to lock the cross-line, to use the tool at any angle.
  • Each time the power button is pressed once, the laser level home hardware projects horizontal lines, vertical lines, and cross lines in sequence.
  • 360° cover horizontal line and 360° vertical line.



laser level home hardware usage


Self-leveling mode:

When the laser tool is switched to the unlocked position, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).



Manual mode:

When the pendulum lock is in locked position, you can place the laser tool at various angles to project non-level straight lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.



laser level home hardware details

  • Turn ON pulse mode: After power on, short press the button besides the power button to turn on the pulse mode. The indicator will light up in red.
  • Pulse mode extends the working range up to 165Ft in bright working conditions, using with Huepar Line Laser Receiver.
  • When use with a receiver, it’s necessary to turn on the pulse mode.
  • It is compatible with Huepar LR-5RG and LR-6RG Line Laser Receiver only.



laser level home hardware details

Easy Use

  • Durable design: Over-molded housing with IP54 water/dust resistance ensures you work well in hazardous working environments.
  • Green Target Plate: Increases the visibility of the laser beam.
  • 360° Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel,supporting you to turn the laser level around at 360 degree , projecting lines at any angle
  • Two Mount Sizes: 1/4"-20 and 5/8"-11 mounting threads for temporarily fastening in place or being fixed on tripod.

laser level home hardware usage

Triple Power Supply

  • This laser tool utilizes the included large capacity lithium battery which is compatible with Samsung SB-L110 battery.
  • This laser level home hardware comes with an holder for installing AA battery for using the tool.
  • Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.
  • Charging protection help prevent the tool from overcharge.



laser level home hardware package

Package Contents:

  • 1 x Huepar 602CR 360 Degree Red Self-Leveling Cross Line Laser Level
  • 1 x Rechargeable Lithium Battery
  • 1 x Power Adapter
  • 4 x AA (LR6) Batteries
  • 1 x AA Battery Holder
  • 1 x Magnetic Pivoting Base
  • 1 x User Manual
  • 1 x Laser Target Plate
