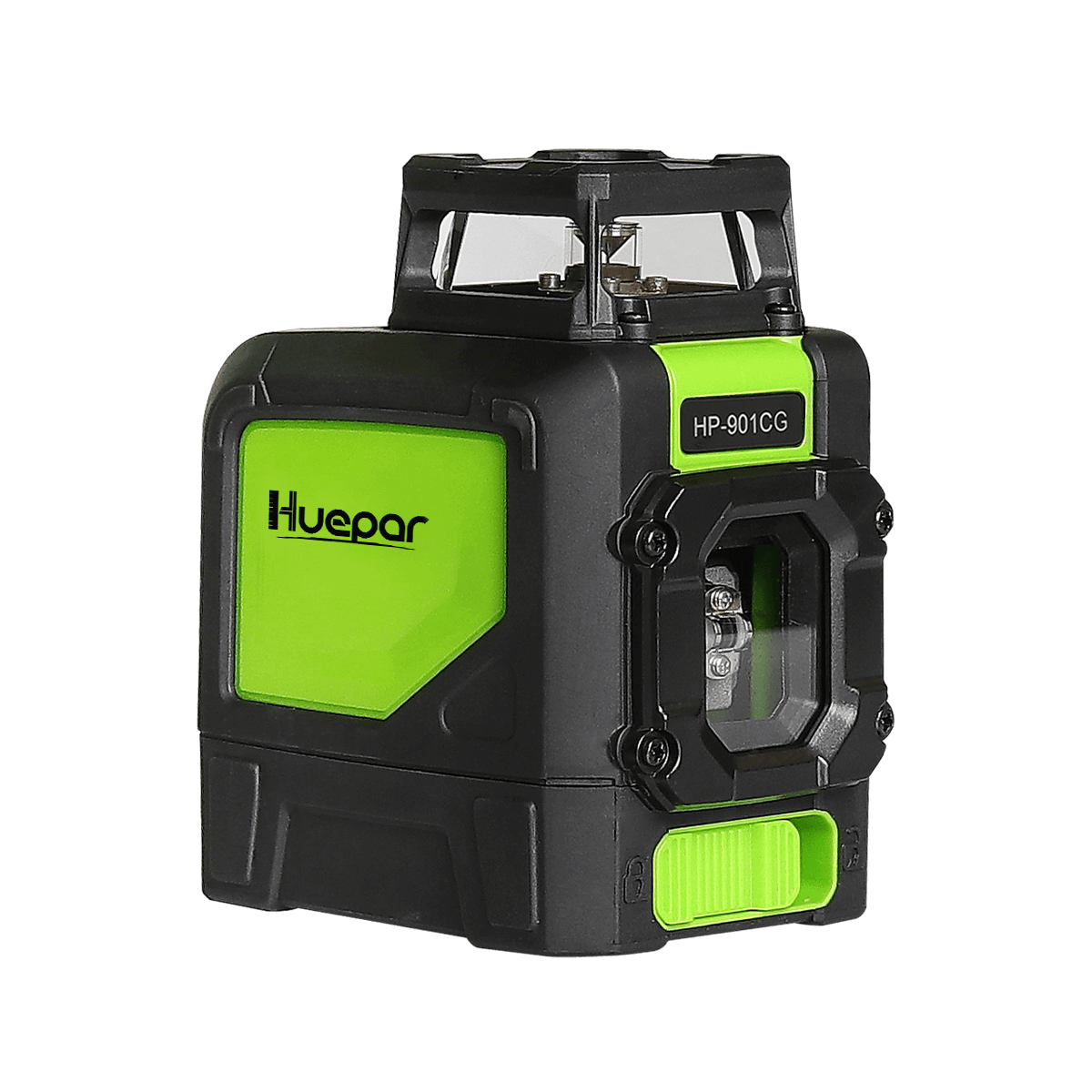

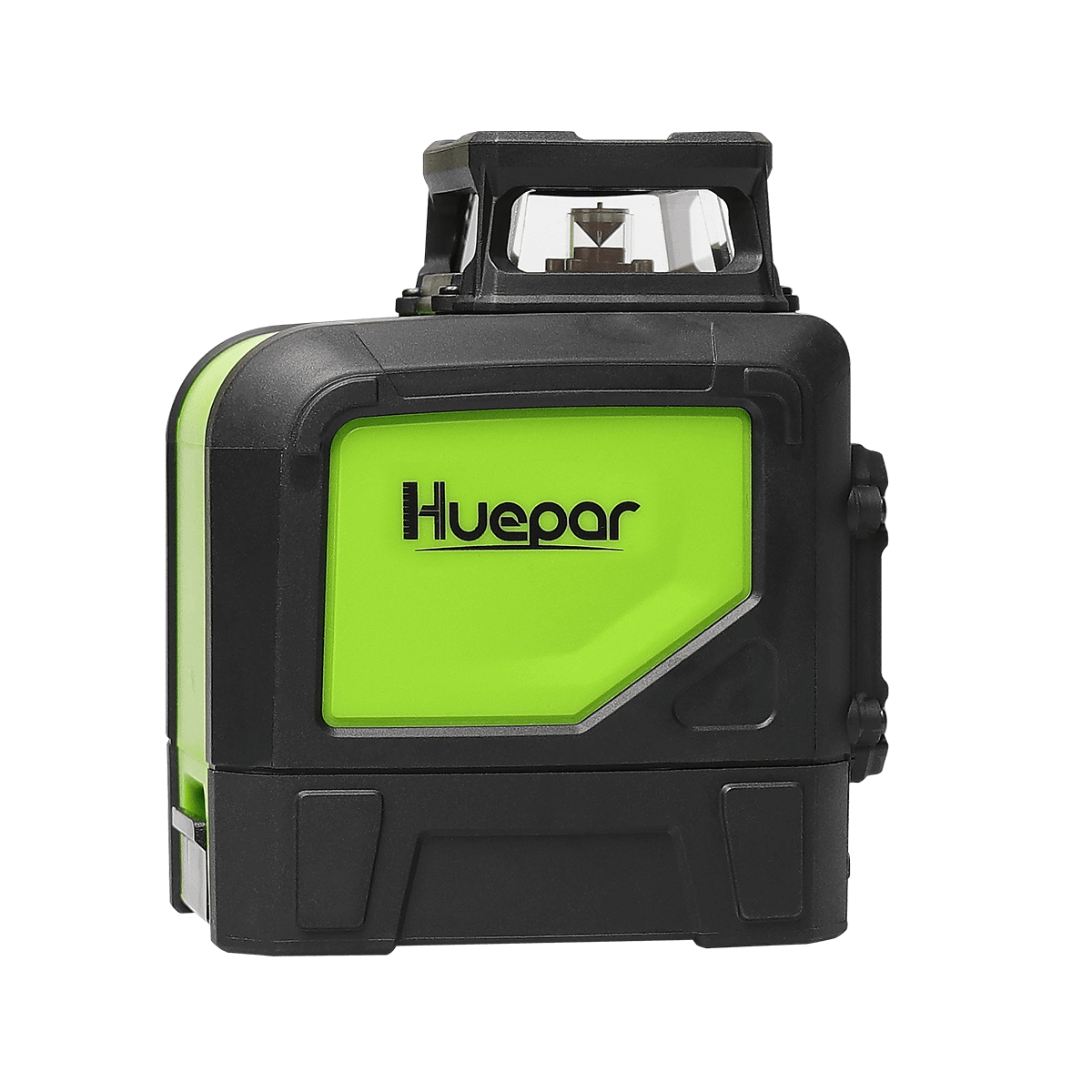

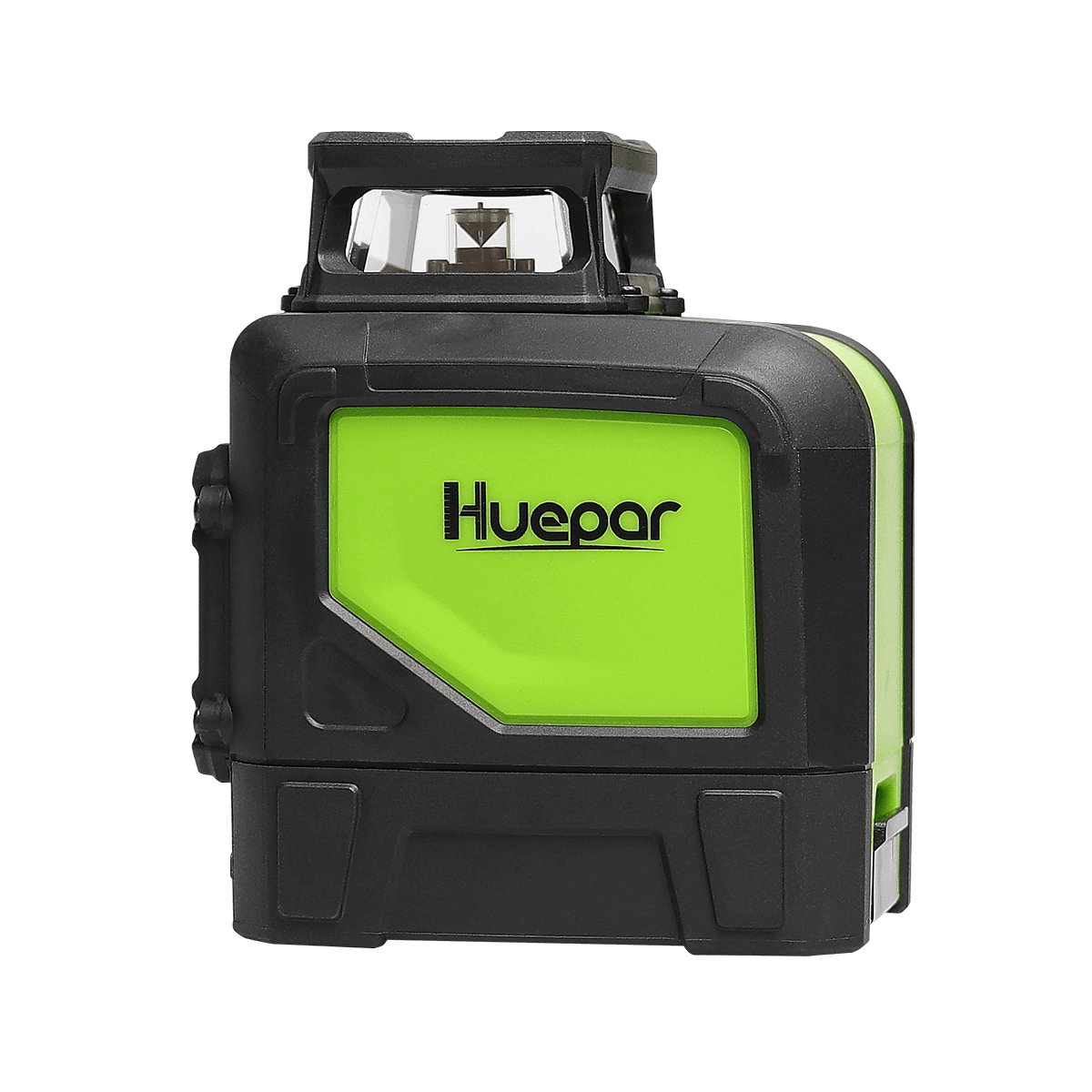

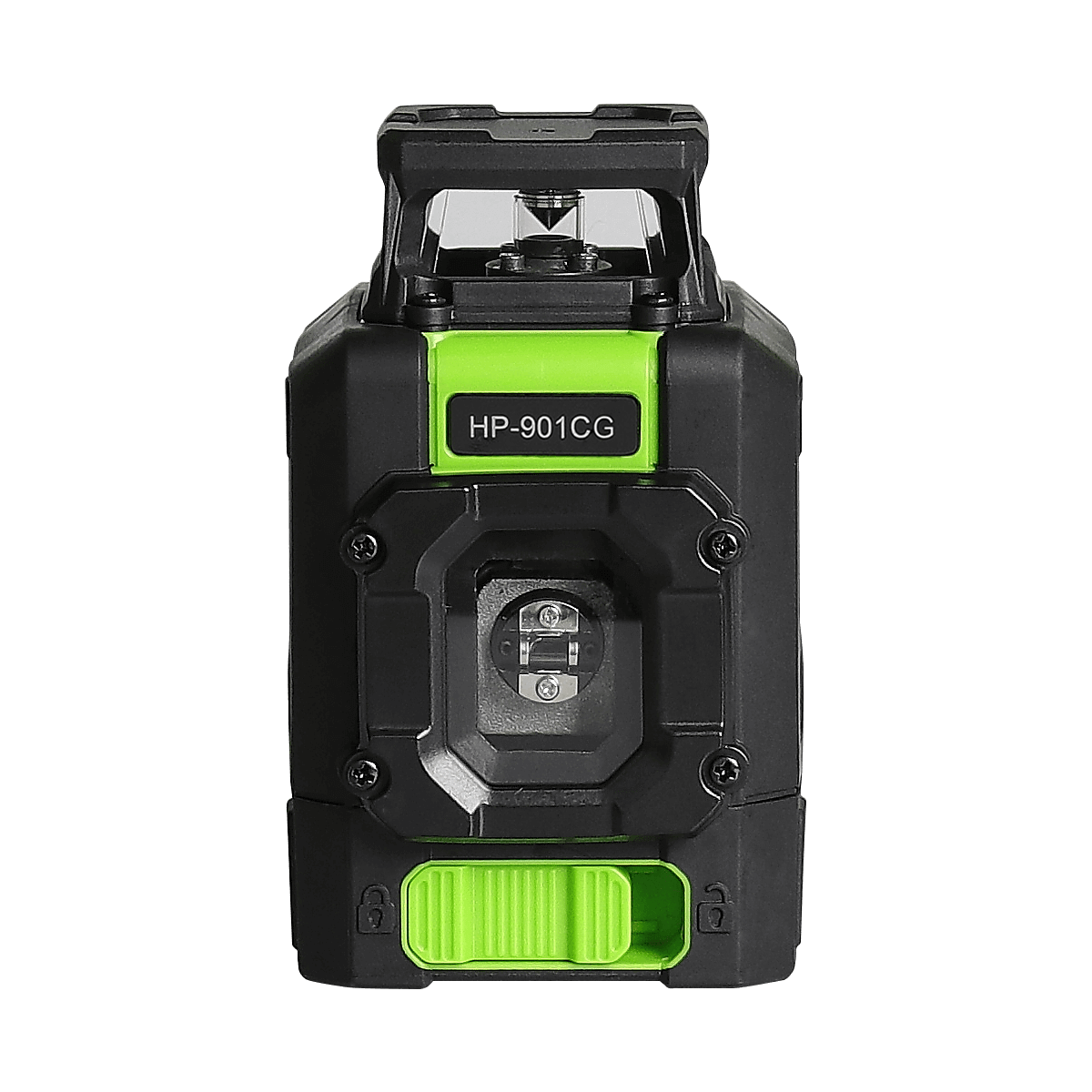

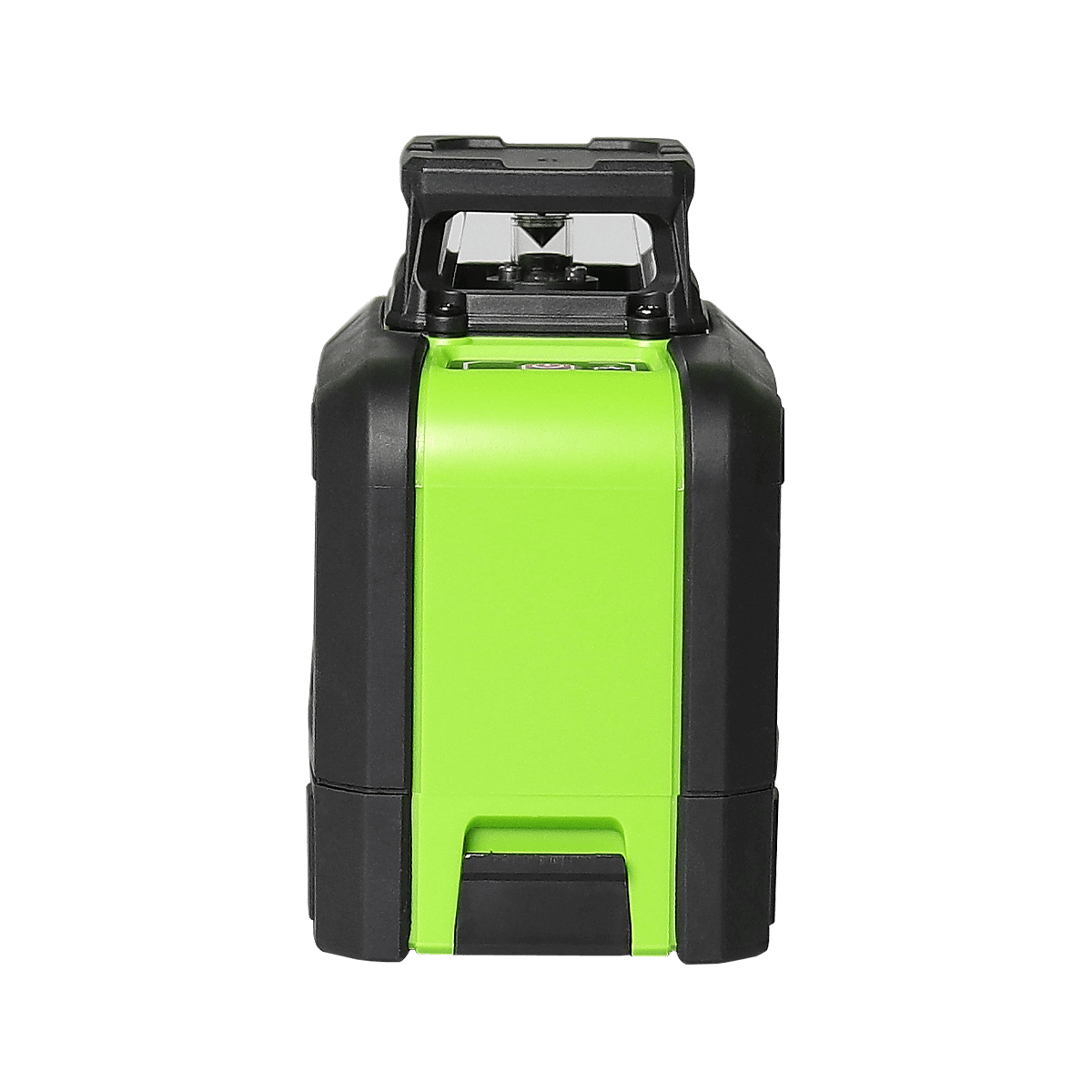

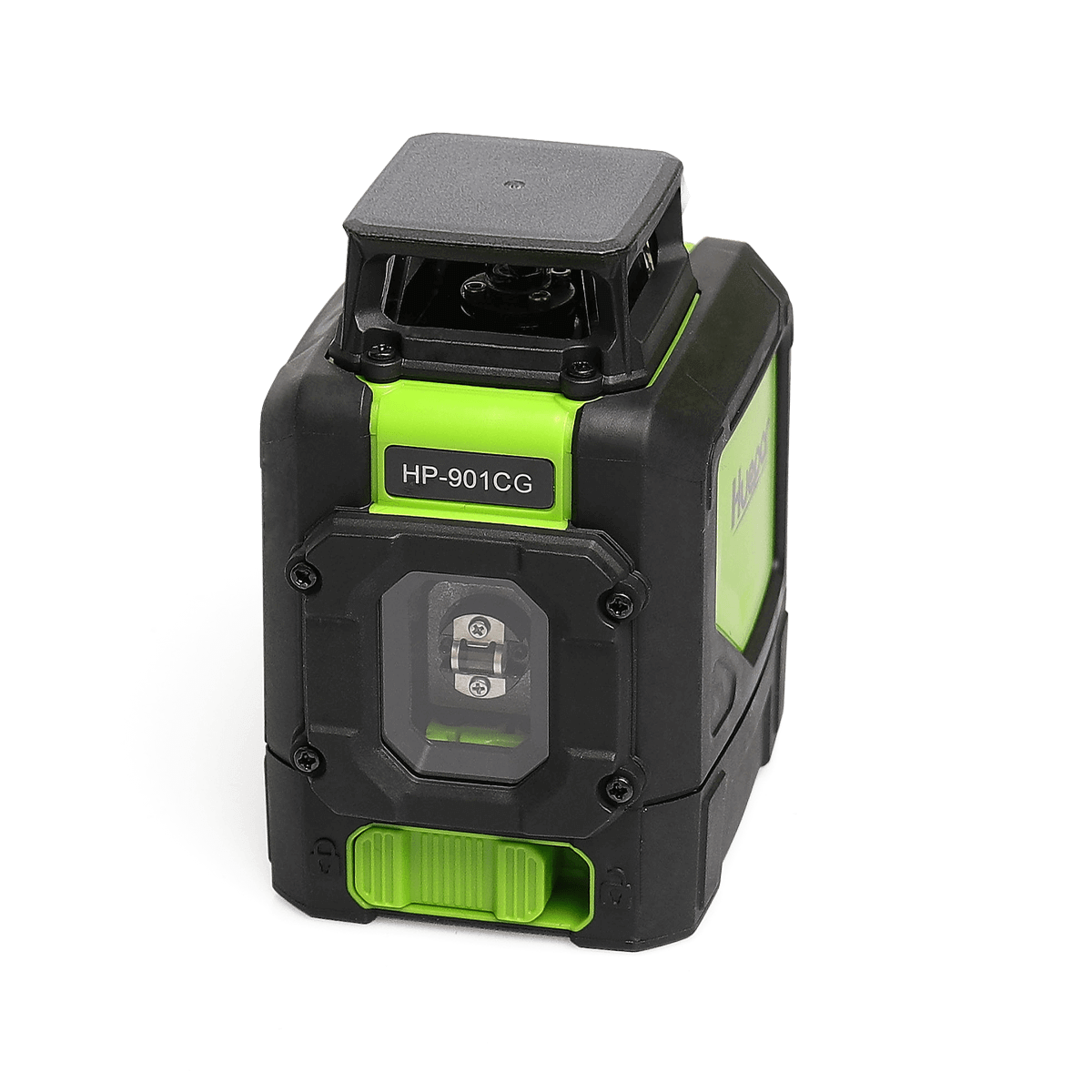

Huepar 901CG Laser Level

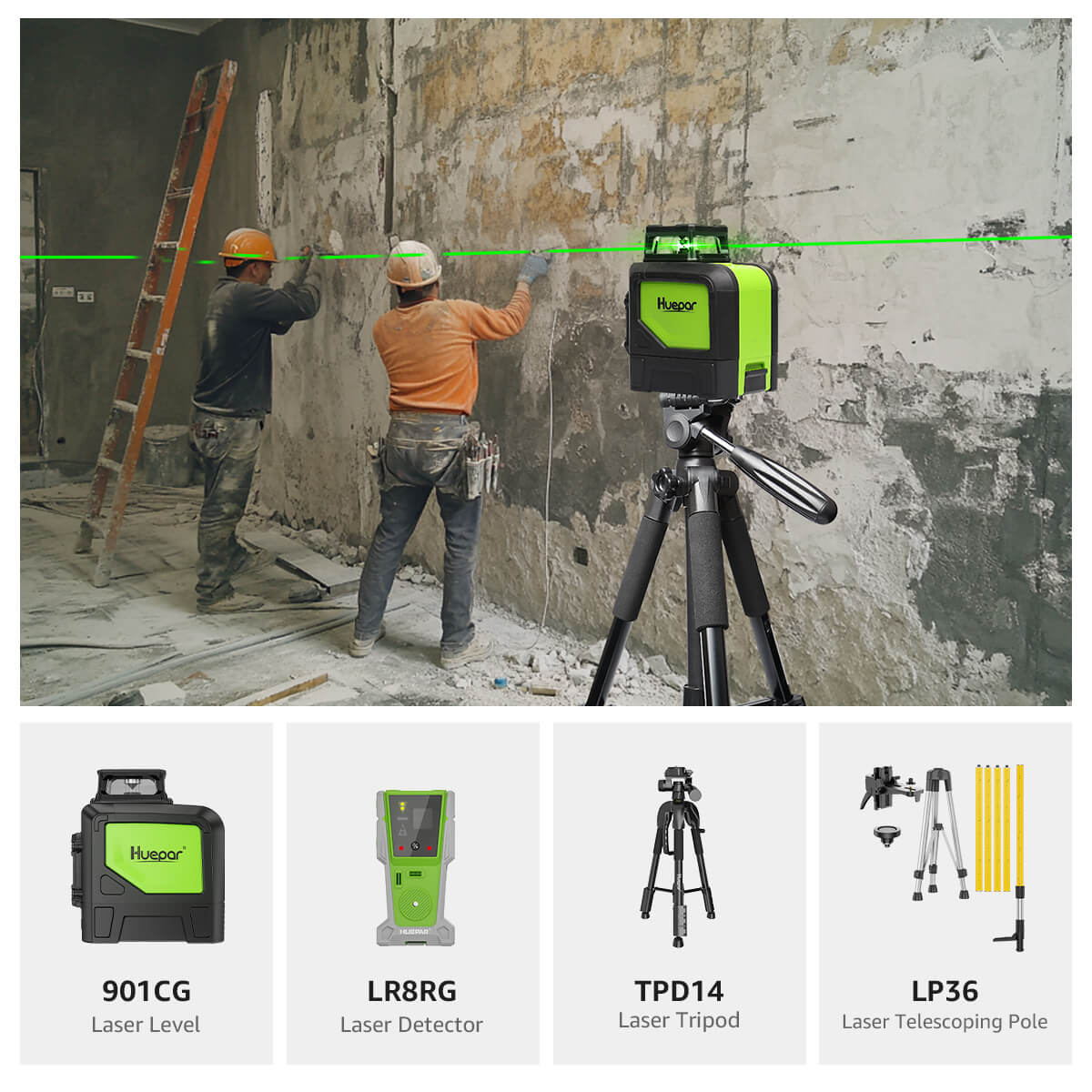

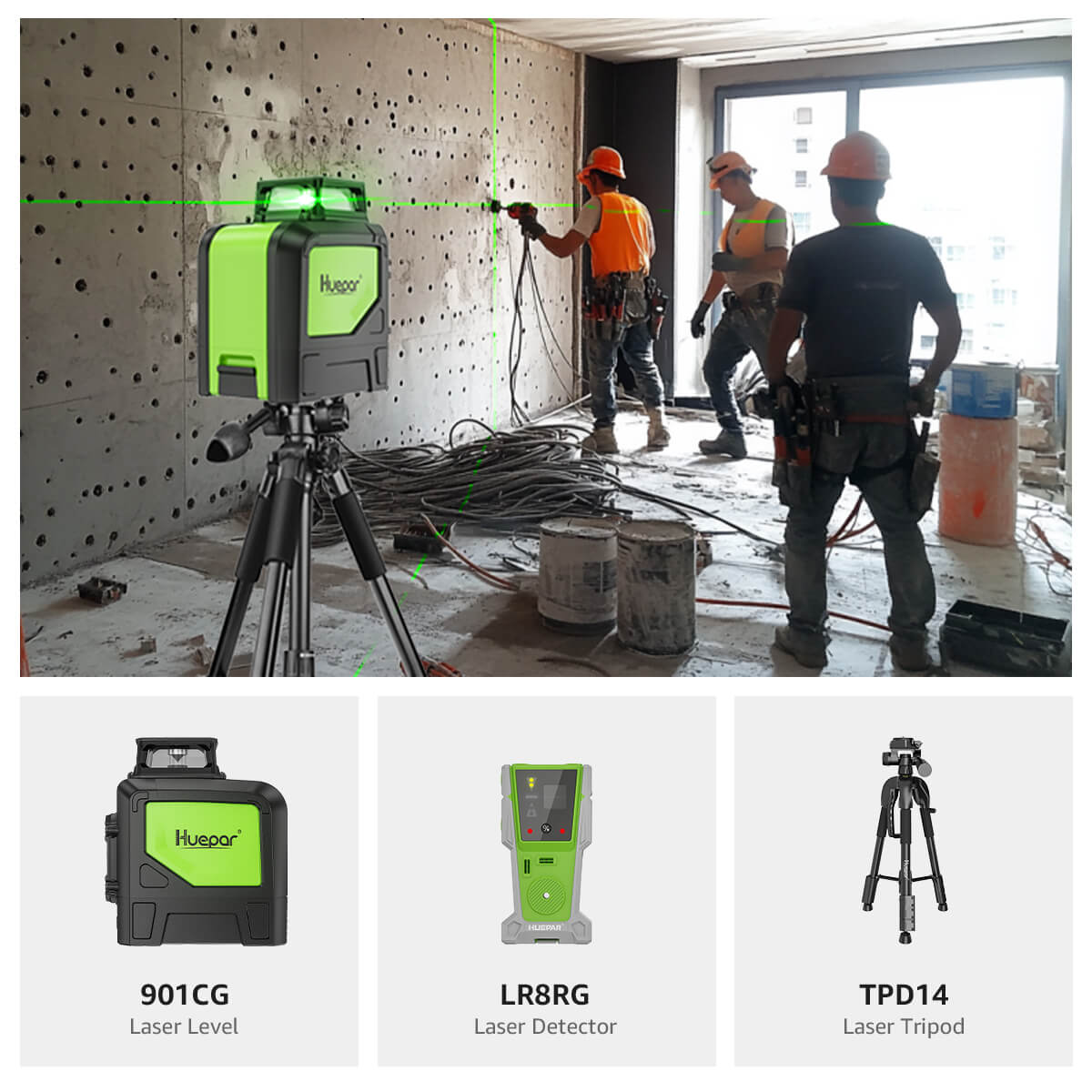

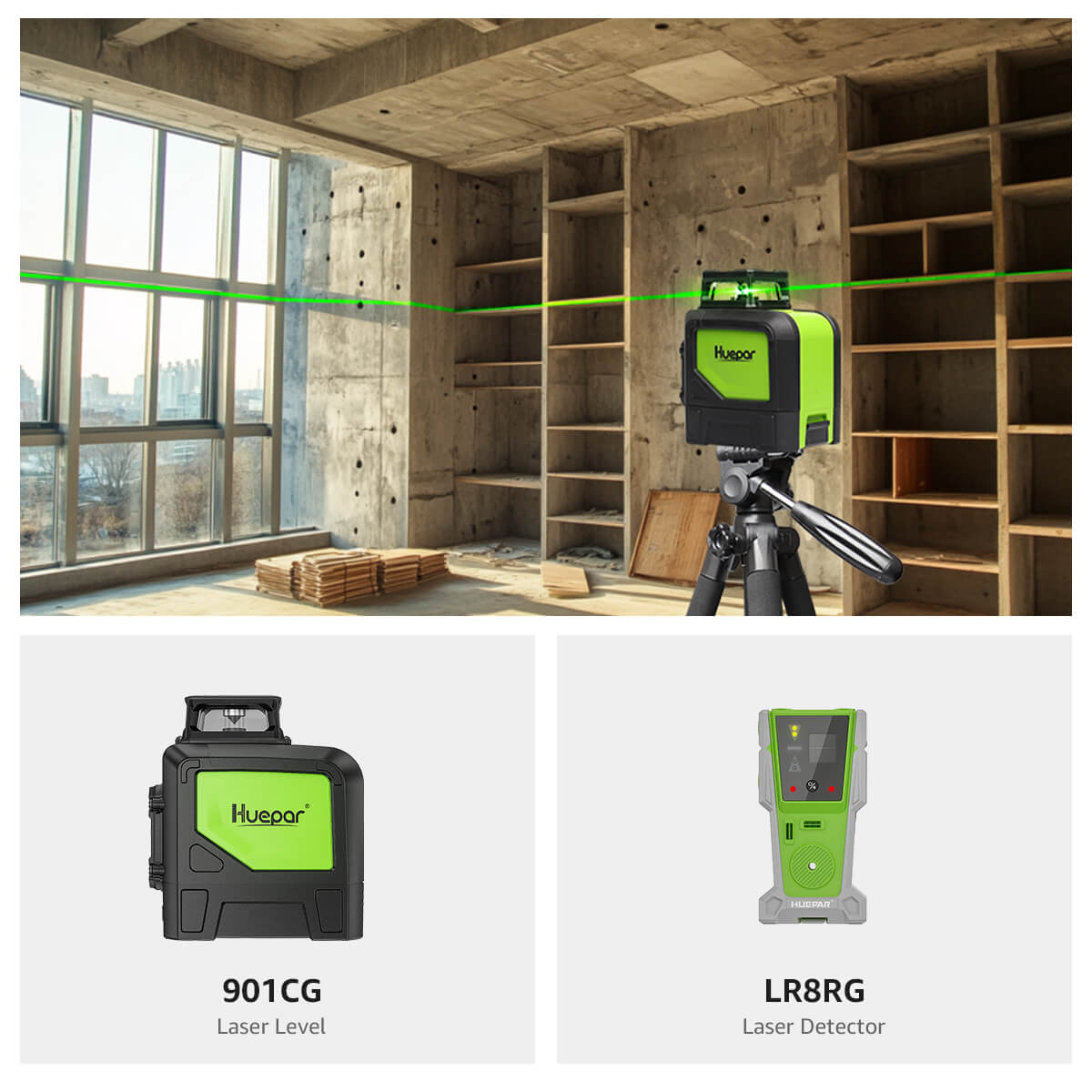

• 360-DEGREE HORIZONTAL LINE - With one ultra-bright 360° horizontal and one 130° vertical green beams provides all-around leveling coverage even in big job-site. The bright 360° horizontal line allows the user to project a laser reference line around the room with accuracy to quickly establish level, enabling users to work in different parts of a room simultaneously.

• GREEN LASER UNIT- This self-leveling cross line laser level adopt the latest LD blue-green laser unit, it is at least twice brighter than red lasers utilizing the same power source. With accuracy of +/- 1/9 inch at 33 feet for lines, and a maximum working range of 130 feet.

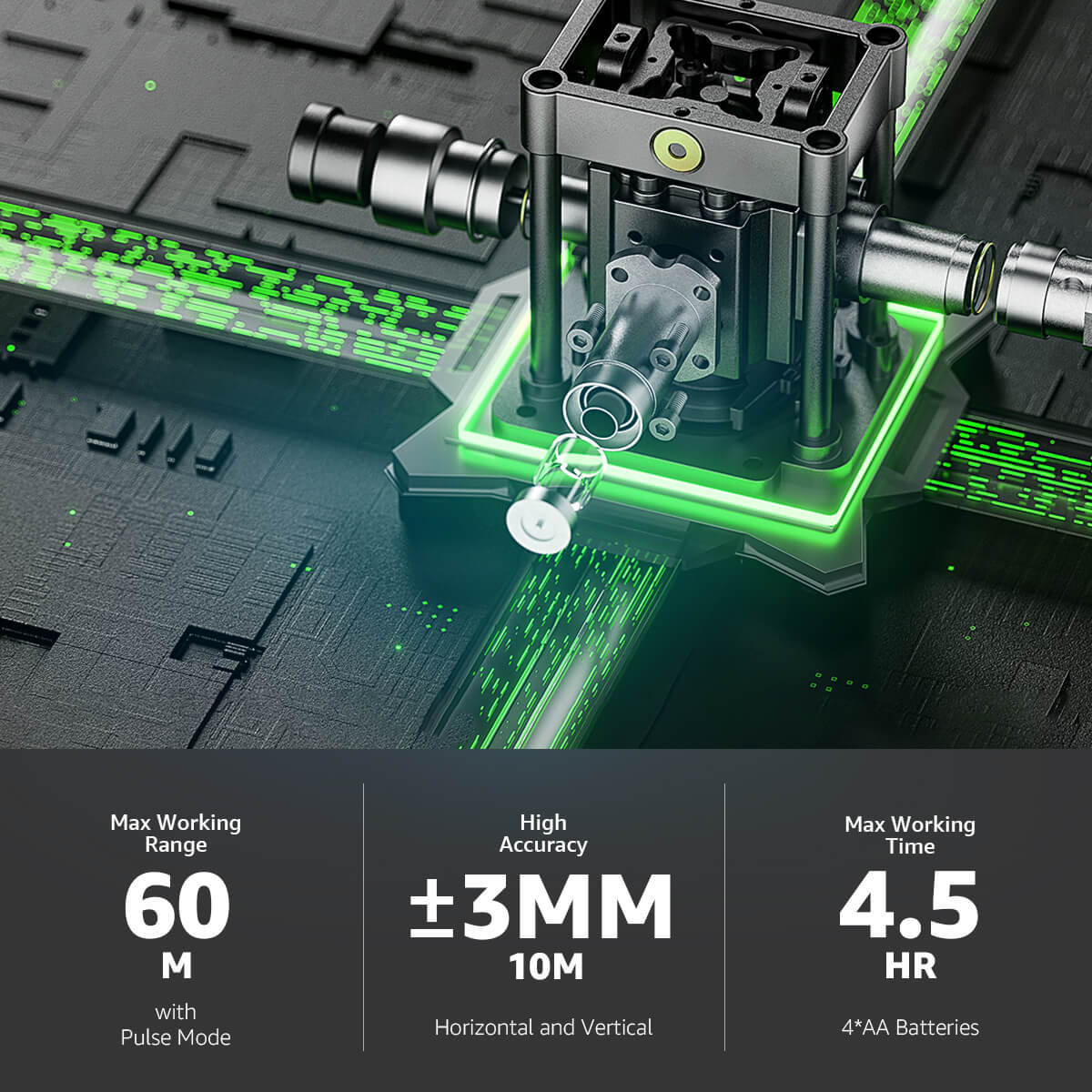

• MULTIFUNCTIONAL MODE - One button operation makes it easy to project lines together or independently (cross line, vertical and 360-degree horizontal). With our smart pendulum system, this laser level tool self levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.

• OUTDOOR PULSE MODE & DURABLE- When the pulse mode is turned on, laser tool can be used with a laser detector for working in even brighter environments or at greater working distances. This laser level is covered by TPR soft rubber for shock resistant, IP54 waterproof and dust proof, shockproof, wear resistant, impact resistance, cold and high temperature.

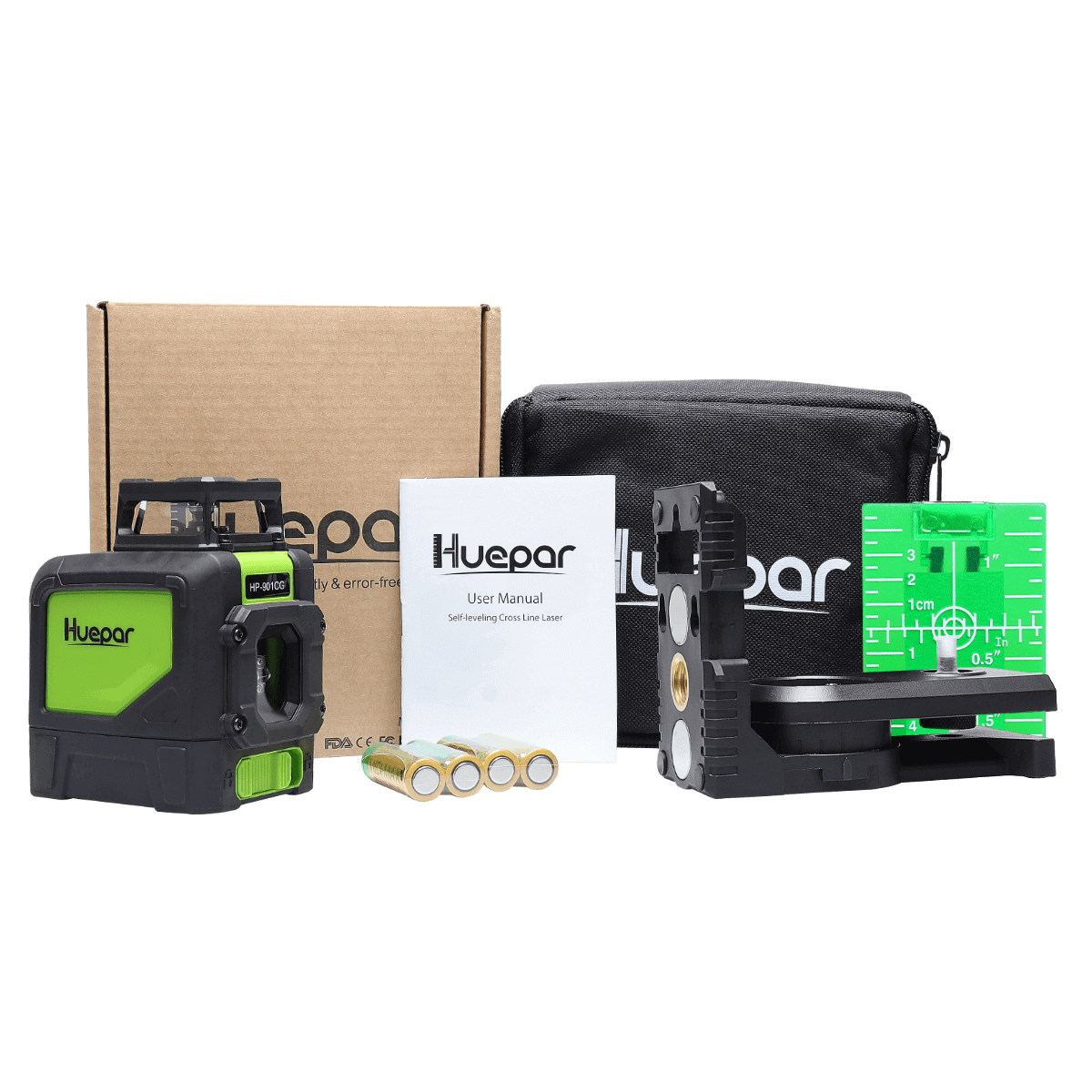

• WARRANTY & KITS INCLUDE- Customer can enjoy 12 months limited warranty but up to 24 months longer warranty if you become a royal customer through the product registration (Offered on the package box). Huepar 901CG Self-Leveling Laser, Easy-to-Adjust magnetic base, Target plate card, Carry pouch, AA batteries, Instruction Manual.

901CG Laser Level Specifications:

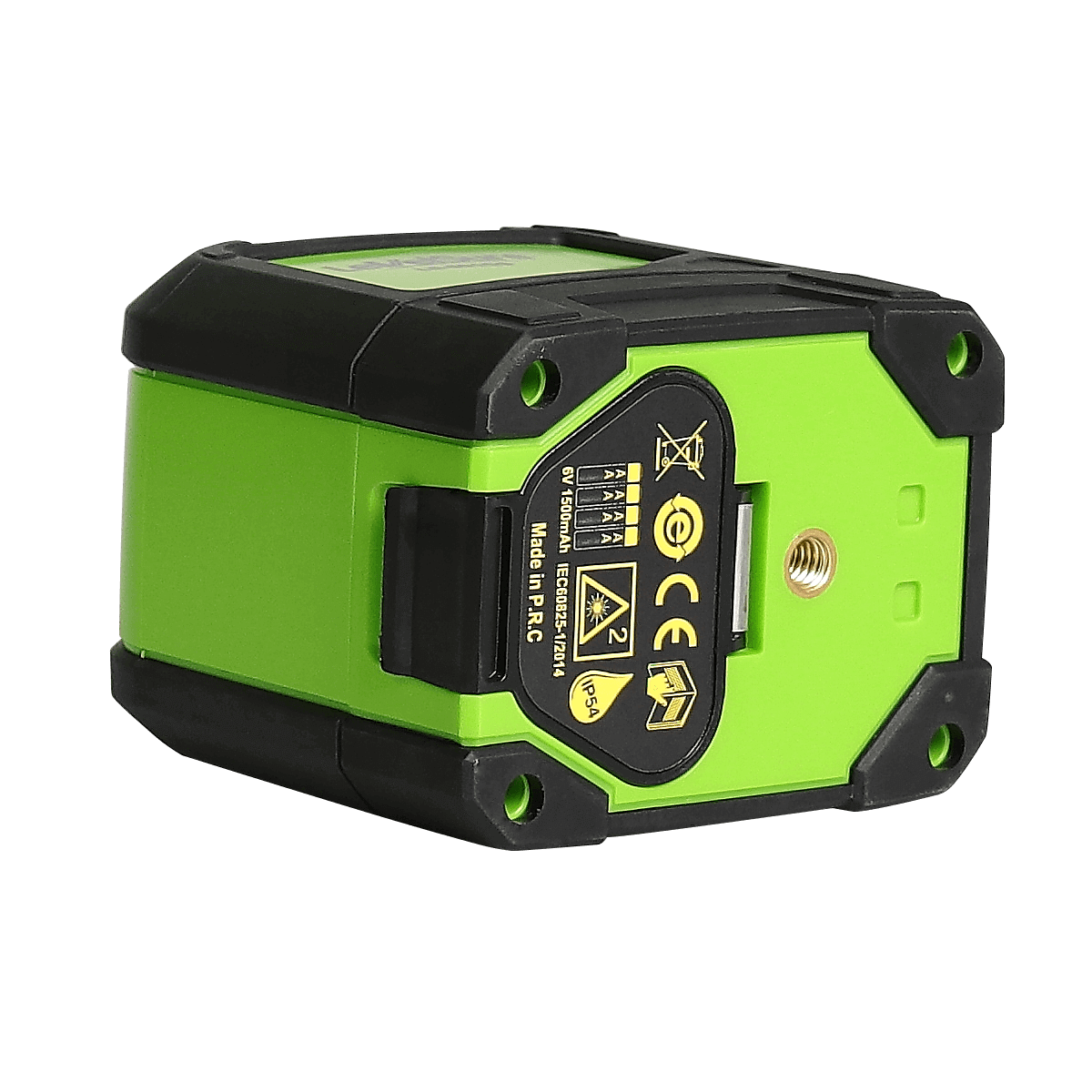

• Laser Class: Class 2 (IEC/EN60825-1/2014), output power <1mW

• Laser Wavelength: 510±5 nm

• Leveling Accuracy: ± 1/9 Inch at 33 Feet

• Horizontal/Vertical Accuracy: ± 1/9 Inch at 33 Feet

• Leveling/Compensation Range: 4°±1°

• Working Distance with Huepar Receiver: 130Ft

• Operating Time: 4~6 hours with all laser beams on

• Power Source: 4×˝AA˝ (LR6), it is recommended to use a large capacity (rechargeable) battery.

• IP Rating: IP54, waterproof, dustproof and shockproof, reliable and tough.

• Operation Temperature Range: 14℉- 122℉(-10℃-＋50℃)

• Storage Temperature Range: -4℉- 158℉(-20℃-＋70℃)

WARNING:

Avoid direct exposure of the laser beam to the eyes.

Two modes of use

➤Self-leveling mode:

Unlock the pendulum, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).



➤Manual mode:

Lock the pendulum, you can （use tripod or other bracket ）place the laser tool at various angles to project non-level straight laser lines. Slashes can be projected.The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.



➤Three kinds of circuit switching functions:

Each time the power button is pressed once, the laser tool projects horizontal lines, vertical lines, and cross lines in sequence.
360° cover horizontal line and 130° vertical line (H360°/V130°)



➤ Pulse Mode：

●Unlock the pendulum, press and hold the power button (for about 5 seconds) to turn on the pulse mode, then turn it on red.

●When outdoor work is required (the receiver needs to be purchased separately,  the laser receiver LR510 can receive pulses.

●The receiver frequency is 10khz and the Huepar brand is the best pairing.
