Huepar Accessories Guides
Huepar Line Laser Receiver
The LR5RG / LR6RG is a laser detector compatible with most Huepar laser levels on Pulse Mode, detecting red or green lasers up to 200 feet away. Main products include LR5RG, LR6RG, LR8RG.
Huepar Tripods
Made of aluminum alloy for stable support with a maximum load capacity of 10kg/22lb. Compatible with most measuring tools. Main products: LP36, M3Y, TPD05, TPD14, TPD16.
![Huepar Aluminum Tripod for Laser Levels](https://huepar.com/cdn/shop/files/Huepar-Nav-4D-laser-leve2.jpg)
Huepar Laser Adapter
The AT2 adapter can be connected to any device that features a male thread, including Huepar laser levels such as 622CG/R, 621CG/R, 8211G, among others. The AT3 adapter is compatible with devices having 5/8" or 1/4" male thread, supporting models like 603CG/R, 621CG/R, and more.
![Huepar Laser Adapter AT2 and AT3 series](https://cdn.shopify.com/s/files/1/0226/8787/5152/files/Huepar_Laser_Adapter_480x480.jpg?v=1705023738)
Huepar Magnetic Bracket
This accessory raises the beam to your desired reference height, featuring TPR soft rubber on all sides for shock resistance. Main products: PV3, PV5, PV7, PV11+, PV15.
![Huepar Magnetic Bracket for Laser Levels](https://huepar.com/cdn/shop/files/Huepar-Nav-3D-laser-level-2.jpg?v=1692319815)
Huepar Care+
By purchasing this one-year extended warranty, your Laser Level can enjoy a total of 3 years of warranty service.
1. This product (Huepar Care) is a special service product and cannot be returned.
2. Valid for one year starting from the date of purchase.
3. The service includes Free replacement of accessories such as laser windows, chargers, batteries, etc, and other accidental damage.
4. Restricted to huepar.com orders.
5. Huepar official has the final right to interpret this.
Overview
-
FULLY LAYOUT WITH 3 X 360 LINE LASERS: One 360° horizontal and two 360° vertical planes enable users to cover the floor, wall, ceiling all around the room, Two vertical lines cross at 90° angles makes user quickly visualize and finish square layout.
-
TRIPLE POWER TECHNOLOGY: Huepar laser tool employed the included large capacity lithium battery for extended run-time, or with 4 AA alkaline batteries, This laser tool can be used at job site with direct input charging even if taking out the battery.
-
MULTIFUNCTIONAL LASER TOOL: The one 360° horizontal and two 360° vertical laser lines can be selected individually depends on job site applications, This line laser level tool self levels and indicates out-of-level condition while pendulum unlocked.
Huepar Z03CG 12 Lines 3D Green Laser Level Specifications:
- Laser Class:Class 2
- Laser Wavelength:510-530nm
- Leveling/Compensation Range:3.5°±1°
- Working Distance (Line):40M (100 LUX), 80M with Huepar Receiver LR-5RG/LR-6RG
- Operating Time:Li-ion Battery: 7 hours with all laser beams on
- Power Source:2PCS 7.4V/2600mah,4PCS AA battery((if ship from China ,it is not included)
- Package:Cloth Bag
- IP Rating:IP54 dust-proof, waterproof and shockproof, reliable and tough
- Operation Temperature Range:14℉ ~ 122℉ (-10℃~ 50℃)
- Mount Size:1/4"-20 and 5/8"-11
![](https://cdn.shopify.com/s/files/1/0226/8787/5152/files/Huepar_Z03CG_P_6_600x600.jpg?v=1722821054)
LCD Screen Display
- Huepar Z03CG laser level has LCD screen to easily get the status of the battery, angle, pendulum and pulse mode on the display.
- Icons on LCD screen: battery level, pendulum locked&unlocked status, X axis tilt angle, Y axis tilt angle, X/Y axis tilt direction, pulse mode.
![](https://cdn.shopify.com/s/files/1/0226/8787/5152/files/Huepar_Z03CG_P_9_600x600.jpg?v=1722820776)
Self-leveling mode:
When open the pendulum , the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range 3.5°±1°.
Manual mode:
When the pendulum is in the middle position, the laser tool can be placed for use at any angle.The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.The locked icon will be displayed on Huepar APP to remind user it is in manual mode now.
![](https://cdn.shopify.com/s/files/1/0226/8787/5152/files/Huepar_Z03CG_P_2_600x600.jpg?v=1722820810)
Multifunctional Laser Tool

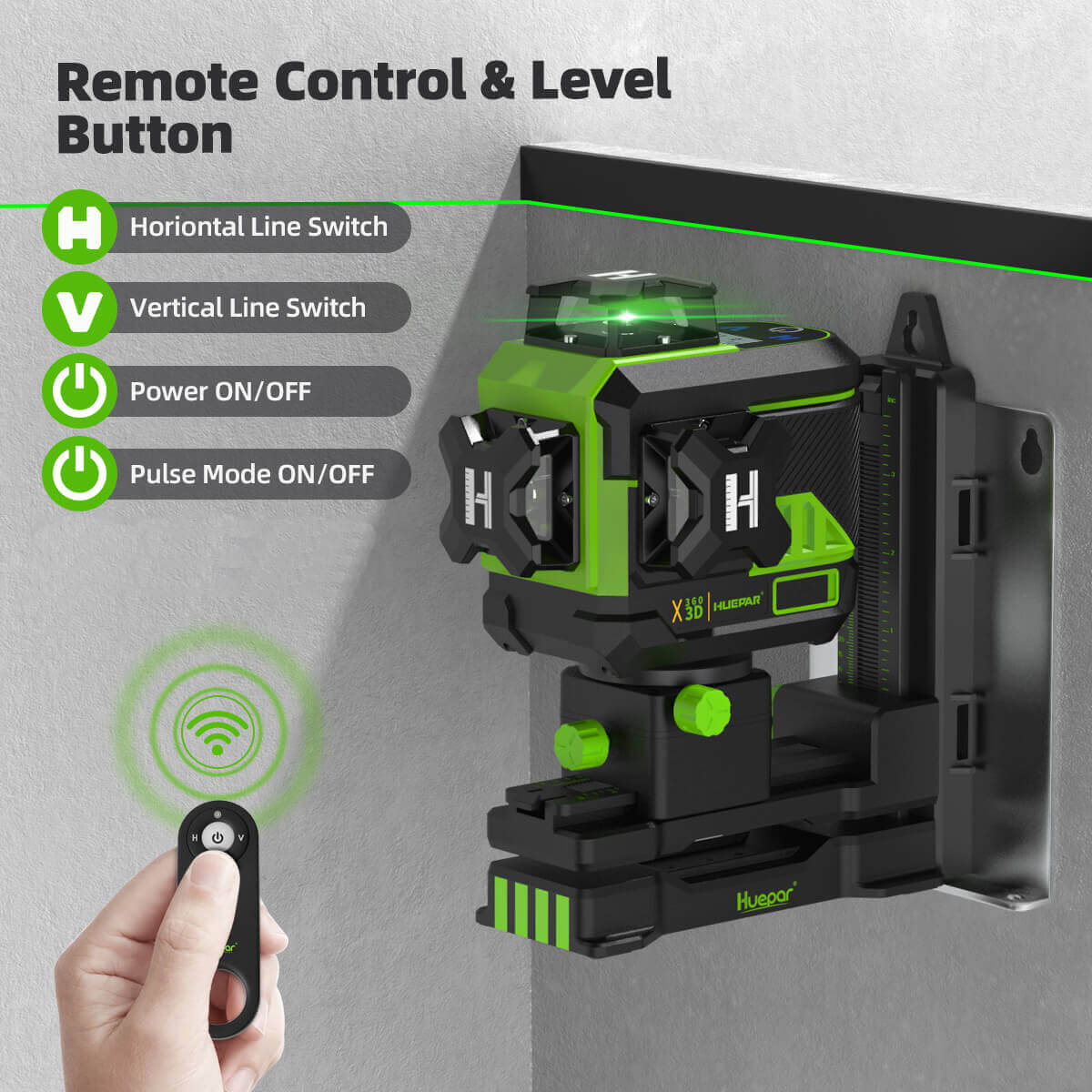

360° horizontal & 360° vertical laser lines can be selected by separate H and V buttons. With smart pendulum, the laser tool self levels and indicates out-of-level condition while pendulum unlocked. The line laser beeps when out of self-leveling range ±3.5°. Once pendulum locked, it switches to manual mode to lock lines at any angle.
![](https://cdn.shopify.com/s/files/1/0226/8787/5152/files/Huepar_Z03CG_P_8_600x600.jpg?v=1722820834)
Pulse mode :
extends laser range up to 250Ft. with Huepar Laser Receiver LR-6RG/LR-5RG/LR-8RG. The laser adopts bright Osram green laser unit.
![](https://cdn.shopify.com/s/files/1/0226/8787/5152/files/Huepar_Z03CG_P_1_600x600.jpg?v=1722820879)

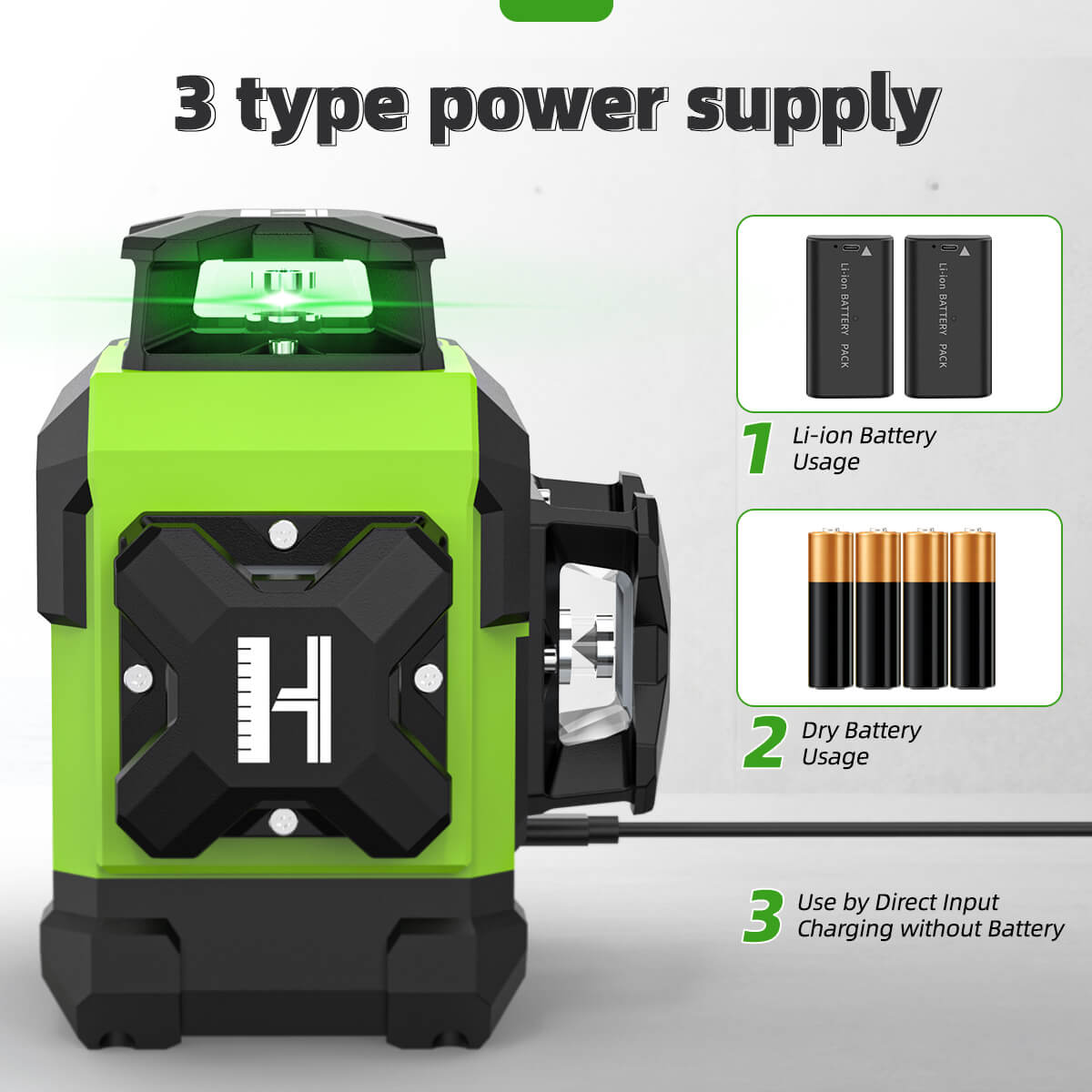

Triple Power Methods & Data Cable Port:
This 360 laser tool adopted large capacity 2PCS Li-ion batteries for extended run-time, or with 4 AA alka line batteries. The Li-ion battery has a charging port to be charged separately and can also be charged by phone, laptop, power bank, car charger, etc. The included battery holder is for installing 4 AA batteries to use the tool. The laser tool can be used at job site by plugged in when taking out the battery.
![](https://cdn.shopify.com/s/files/1/0226/8787/5152/files/Huepar_Z03CG_P_5_600x600.jpg?v=1722820897)
WATERPROOF & WARRANTY:
IP54 waterproof design protects the unit from water splashes, dust and construction debris. The kit has a cloth bag for much more convenience to carry and store the laser tool. We provide a year after-sale service, lifetime technical support. Please contact us freely if you have any concerns.
![](https://cdn.shopify.com/s/files/1/0226/8787/5152/files/huepar_Z03CG_7_600x600.webp?v=1670927794)

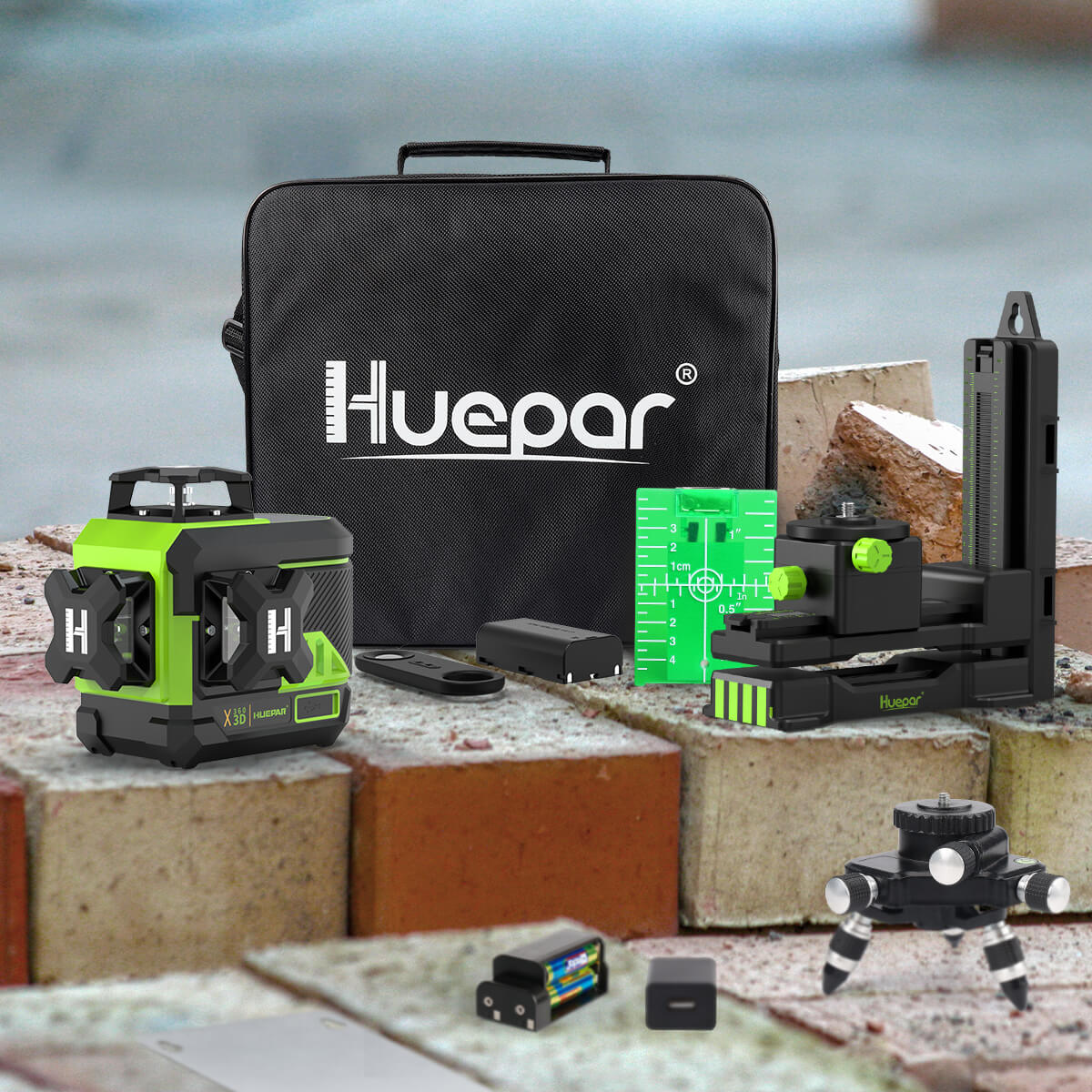

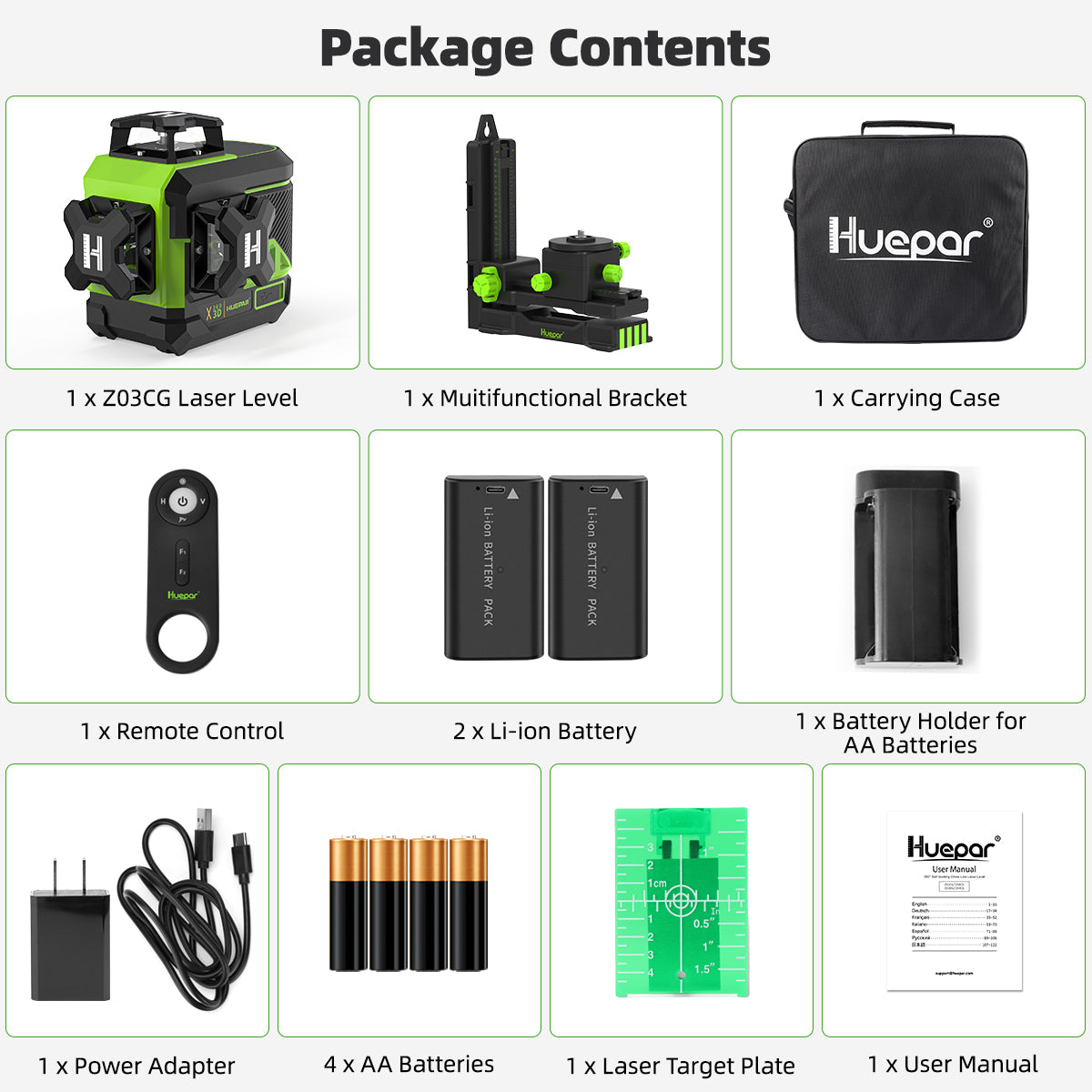

Packing List:
1 x Huepar Z03CG Green Laser Level
1 x Multifunctional Baecket
1 x AT2 Base Adapter
2 x 2600mAh Li-ion Battery
1 x Remote Control
1 x Power Adapter
1 x AA Battery Compartment
4 x AA battery ( AA battery is not included if ships from China)
1 x User Manual
1 x Carrying Case
