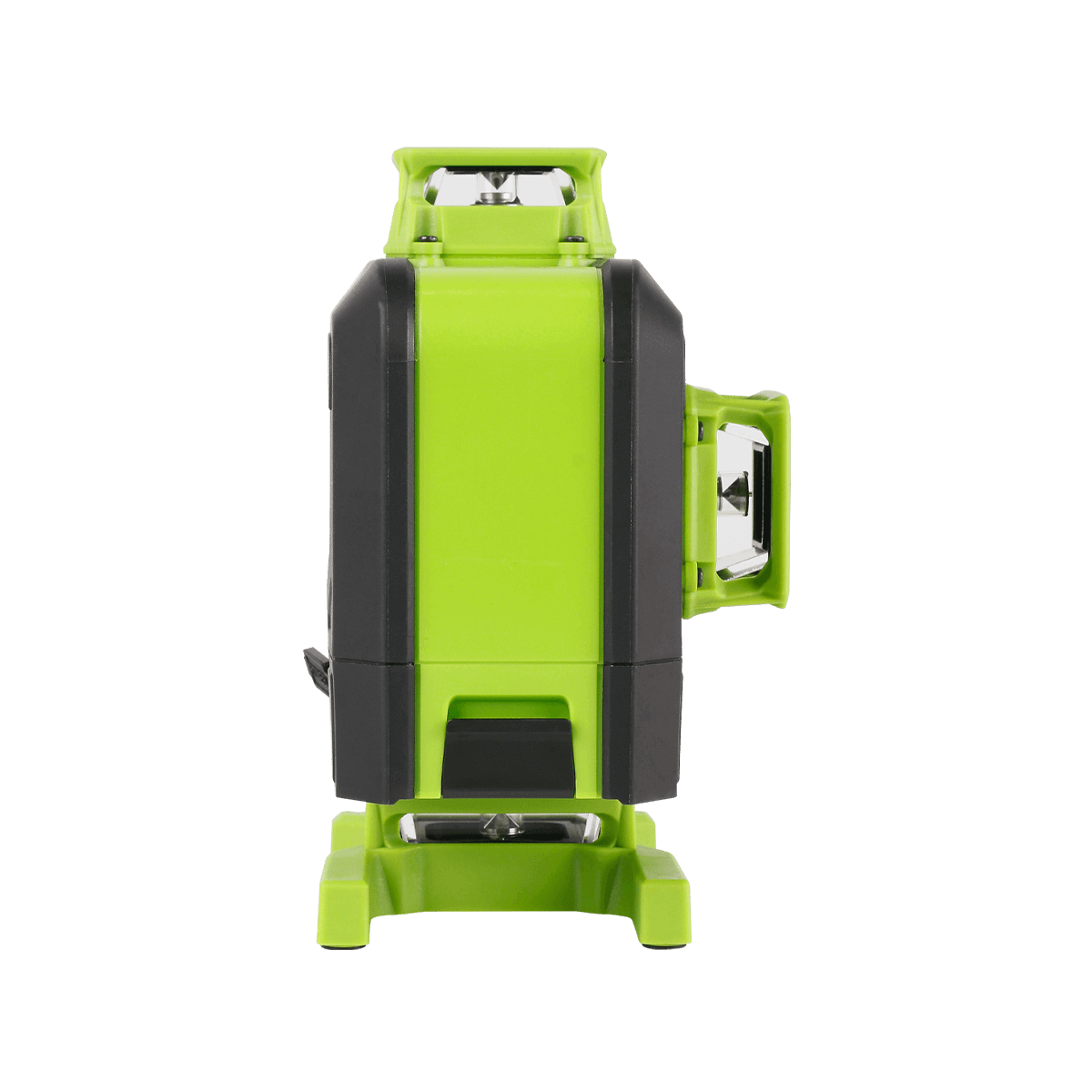

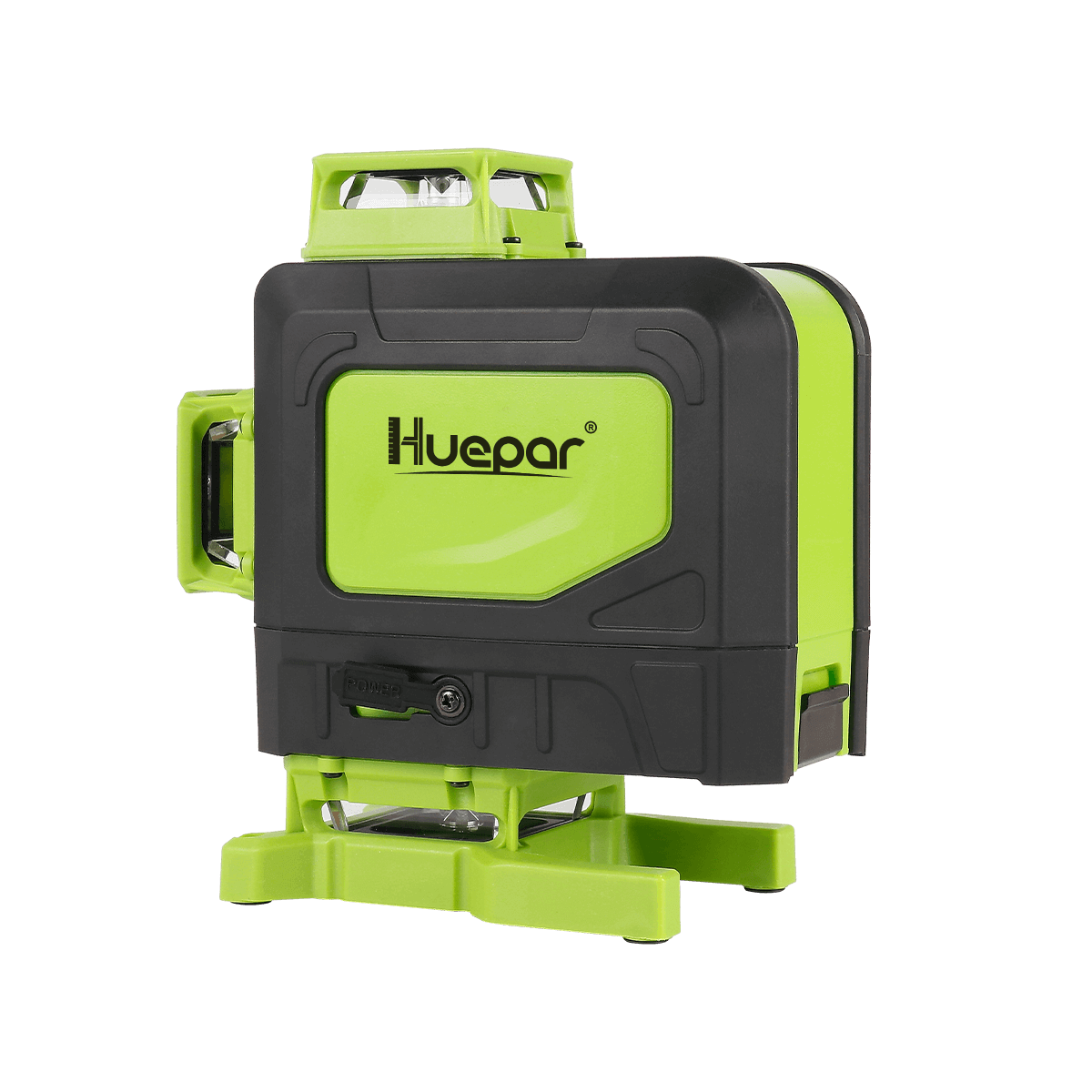

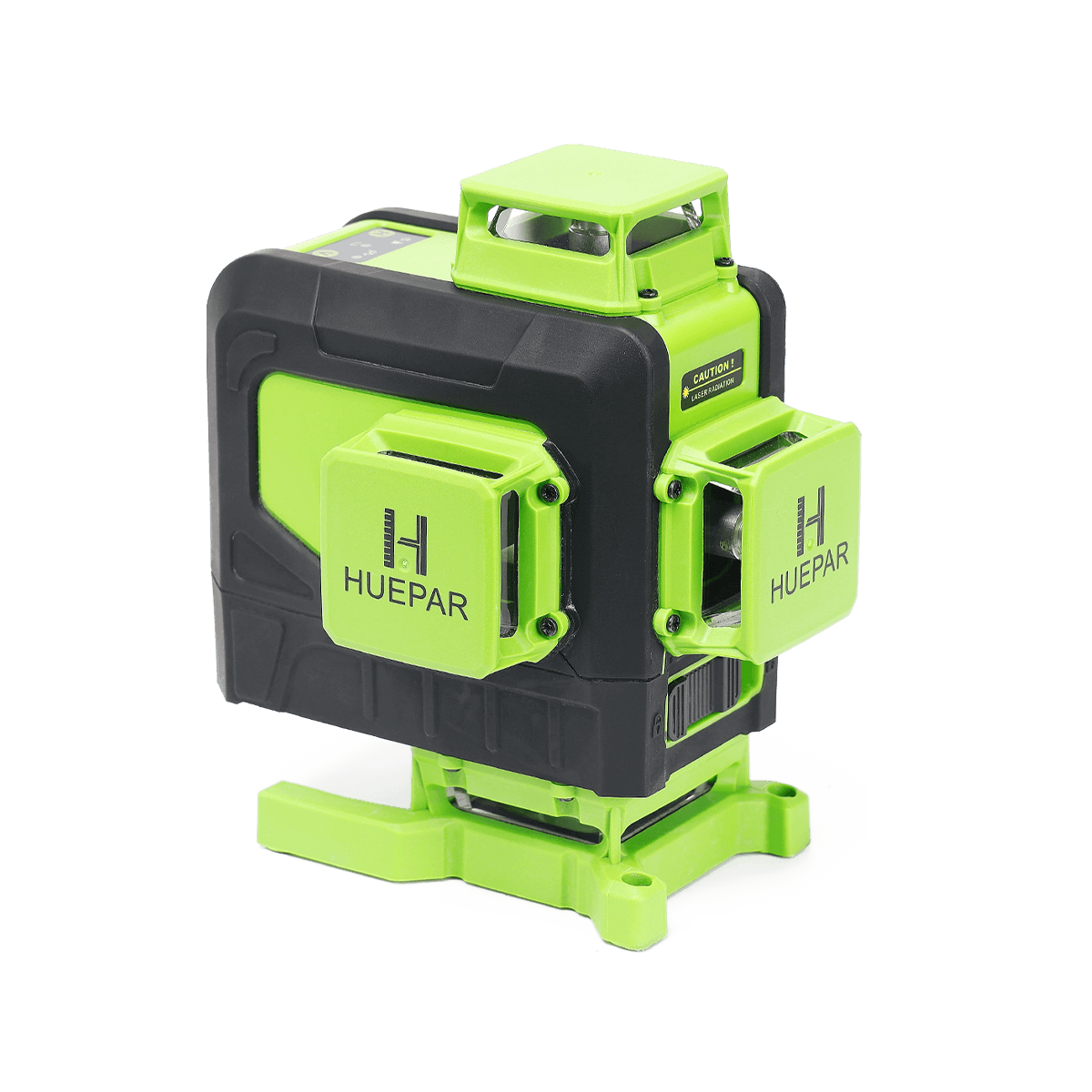

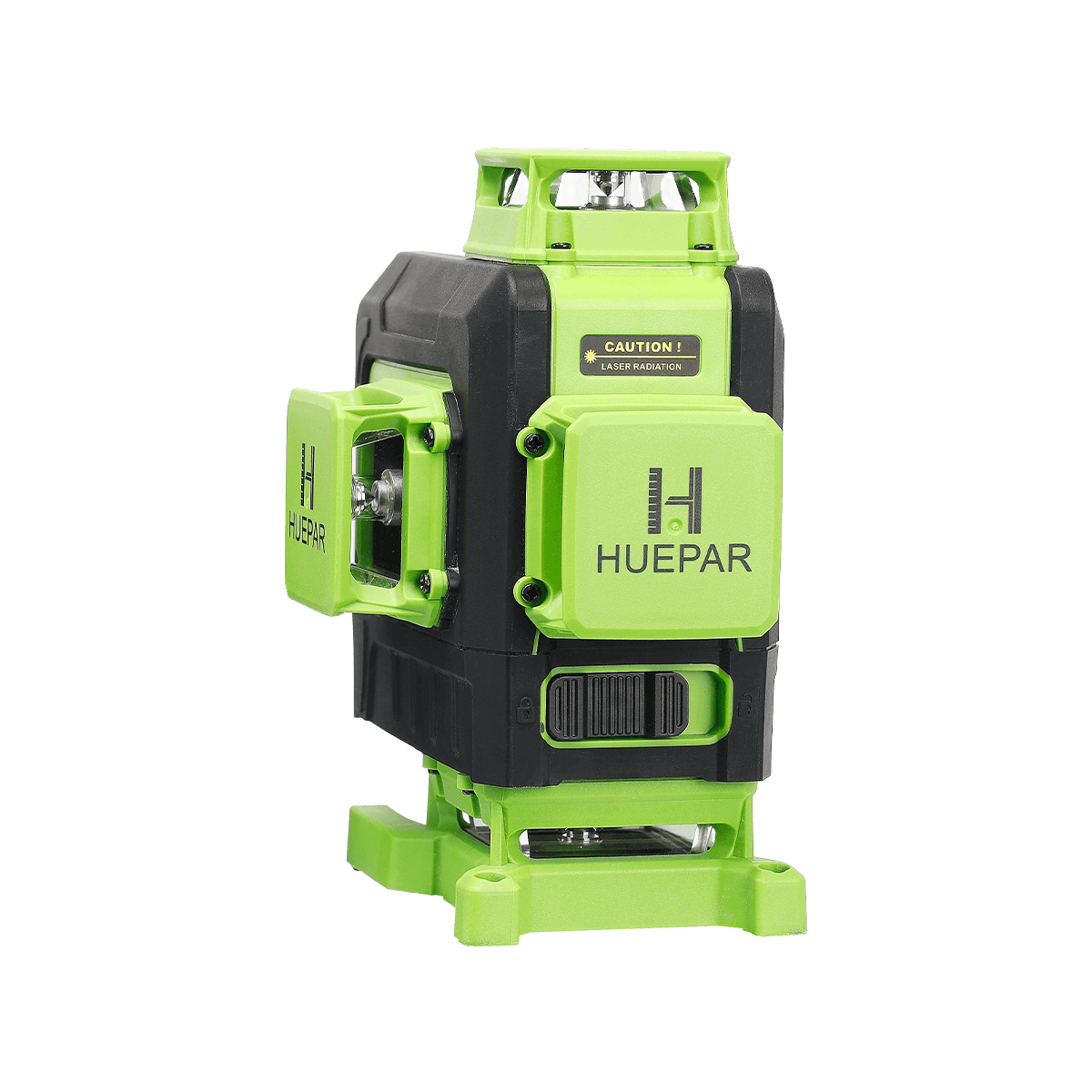

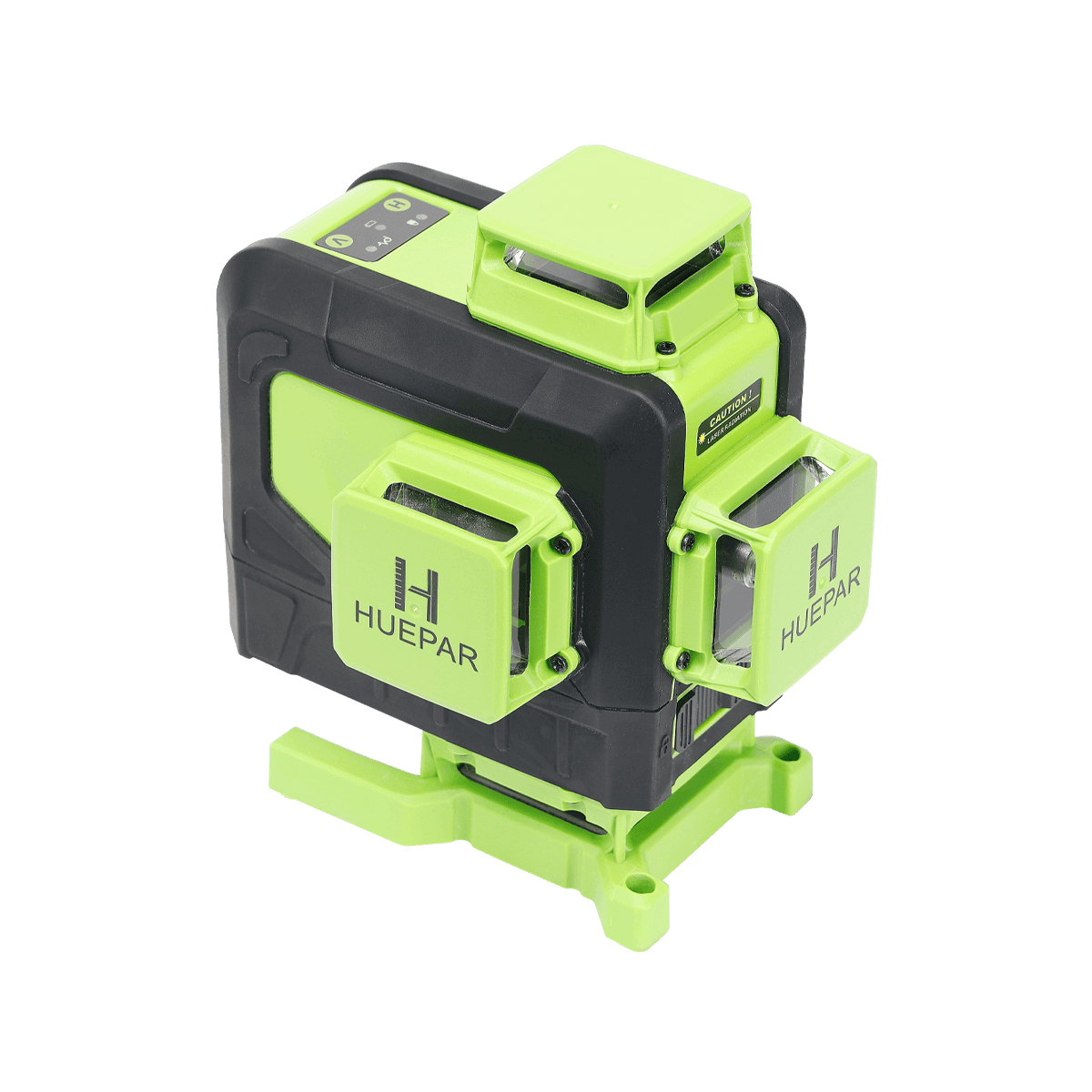

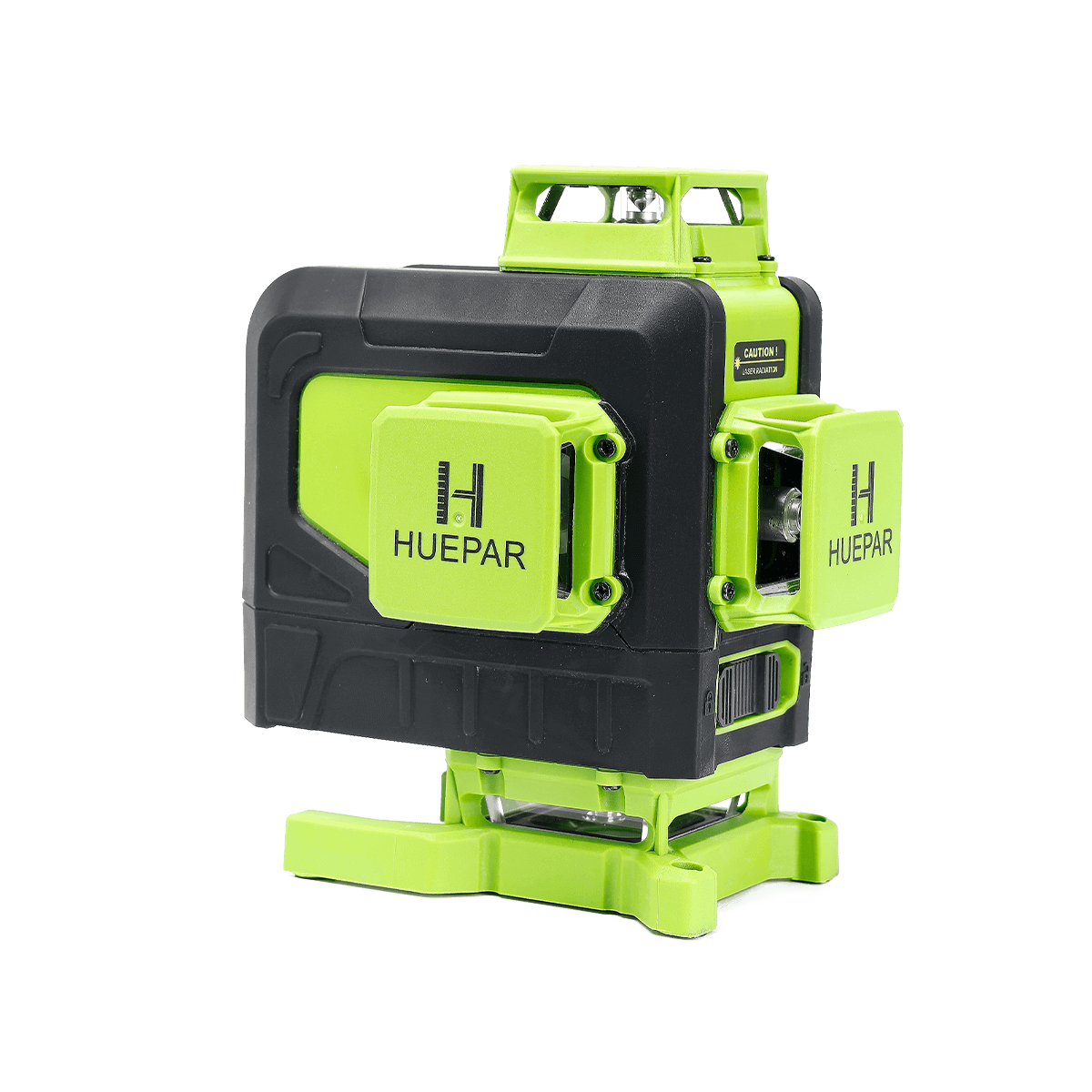

Huepar 904DG Laser Level

Huepar 904DG Laser Level


Regular price €199,99
Regular price €199,99 Sale price
- % Sold out

Huepar 904DG Laser Level

Huepar 904DG Laser Level

check_circle Tax included, shipping calculated at checkout.

Regular price €199,99
Regular price €199,99 Sale price
Sold out

4 X 360° Osram Green Laser Lines Level
Accuracy of ± 1/9" At 33ft
Self-Leveling Range ±4°
Up to 197ft Range with Pulse Mode
Bluetooth Control
3.7v 5200mah Li-Ion Battery
360° Magnetic Base, 1/4”-20 Threads
Detachable Laser Window Adapter


Select Option



Add Top Accessories

Learn which accessories are right for you >
Huepar LR8RG - Laser Detector/Line Laser Receiver

Huepar LR8RG - Laser Detector/Line Laser Receiver

€59,99
HUEPAR TPD14 - 1.43m/4.7Ft Adjustable Laser Level Tripod HUEPAR EU - Laser Level

HUEPAR TPD14 - 1.43m/4.7Ft Adjustable Laser Level Tripod

€59,99
HUEPAR LP36 - 12Ft/3.7m Laser Level Adapter Tripod HUEPAR EU - Laser Level

Huepar LP36 - 3.7m Lasers Level Adapter Tripod

€89,99

Buying Spare Batteries?

HUEPAR Lithium Battery for Series B / 9 with DG HUEPAR EU - Laser Level

HUEPAR Lithium Battery for Series B / 9 with DG

€29,99

Expand Extended Warranty?

Learn more >

Huepar Care - Free 2-Year Membership Warranty

€0,00

Huepar Care - 1 Year Extended Warranty

€29,99

302 in stock

 More payment options

Pay with Ease

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Trusted Delivery with DPD/DHL/UPS/Correios


add_shopping_cart

Jan 7th

Ordered

local_shipping

Jan 7th - Jan 8th

Order Ready

redeem

Jan 10th - Jan 13th

Delivered

View full details

±1/9 inch at 33Ft

Horizontal/Vertical Accuracy: ±3MM/10M

With Remote control

The remote control enables to select three 360° laser lines individually at a distance up to 33Ft.
The laser line(s) of ground laser level can be temporarily turned OFF by the remote control when you need to leave for a while.

Long Working Time

3.7V / 5200mAh Li-ion Battery and provides up to 6-12 hours of running time.

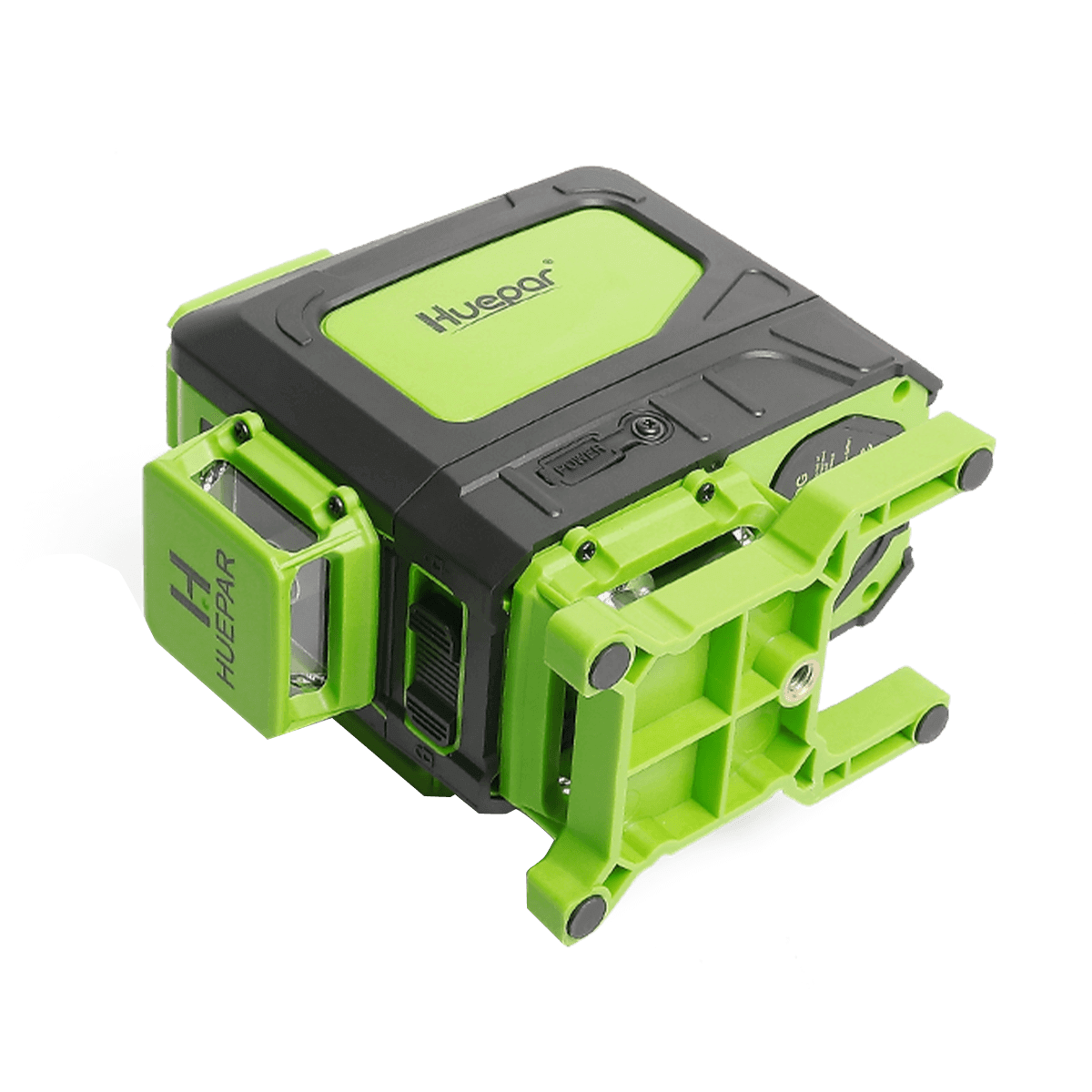

Wall Hanging Plate

A dedicated adapter helps to hang the laser tool, bringing the laser window closer to the wall. At this time, the bracket can be inverted or flipped sideways.

Magnetic Pivoting Base

360° Strong Magnetic Pivoting Base: Allows for attachment to metal track and steel,supporting you to turn the laser level around at 360 degree, projecting lines at any angle.

SELF-LEVELING RANGE ±4°

Self-leveling mode

Once the pendulum unlocked, self-leveling mode is enabled.The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.

KEEP SELF-LEVELING

Manual mode

When the pendulum locked, the laser tool can be placed for use at any angle.

The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

FOR OUTDOOR WORK

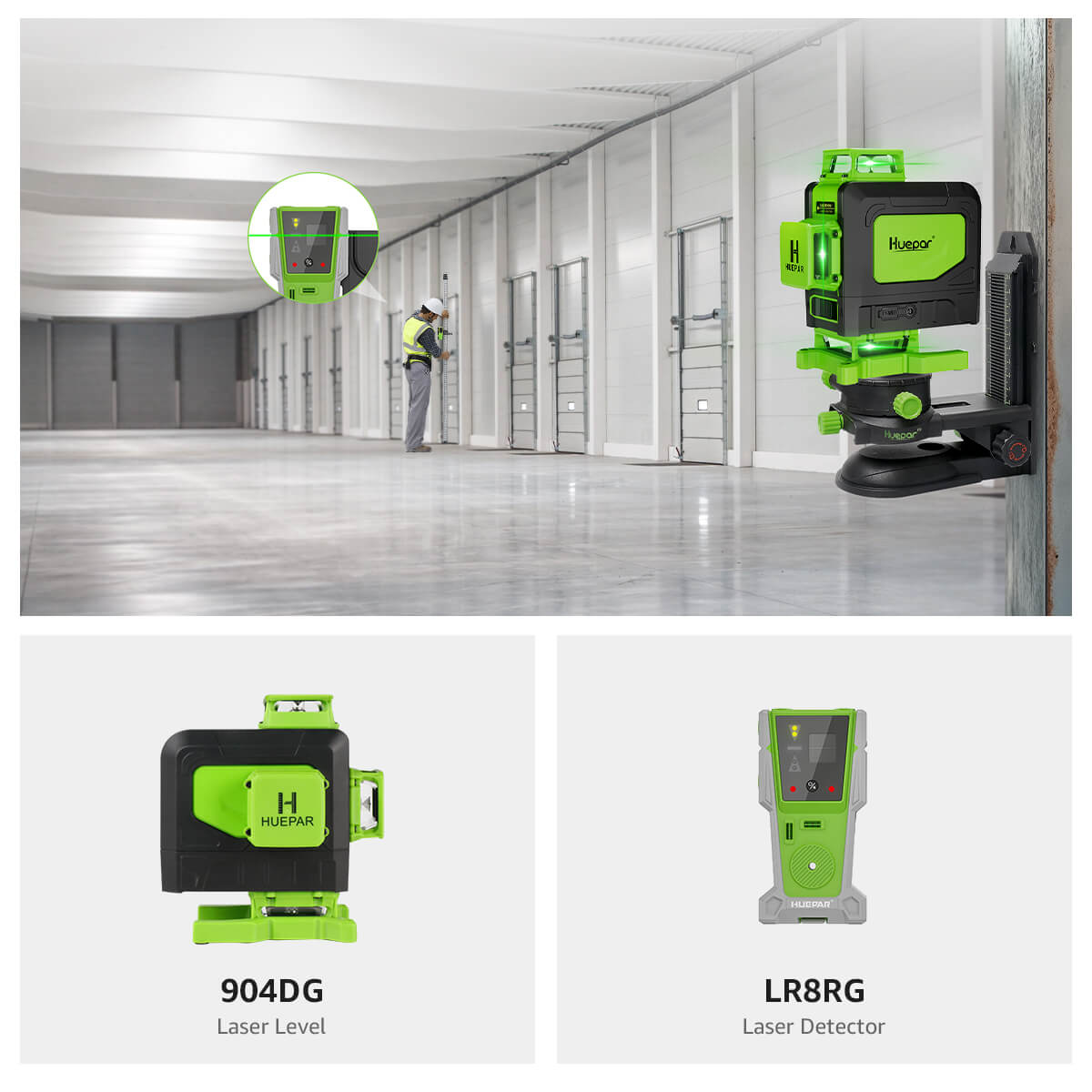

Outdoor Pulse Mode

Pulse mode extends the working range up to 165 feet in brighter conditions when used with the Huepar Line Laser Receiver. It is only compatible with the Huepar LR-6RG / LR-5RG Laser Detector. Note: Keep the pulse mode on when using with a receiver.

EASY TO SWITCH THE LINE

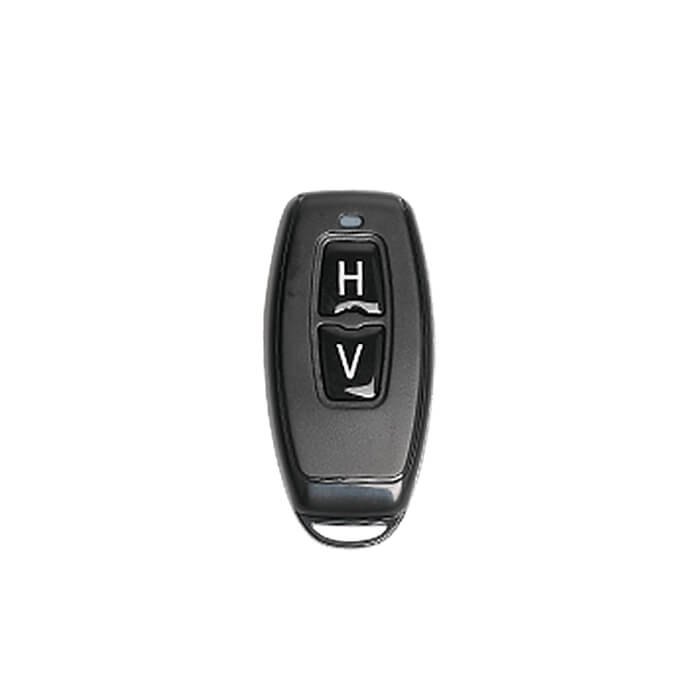

Work with the Remote Control

Short press the H and V buttons on the keypad to switch the horizontal and vertical laser lines separately. The remote control allows selection of the 4x360° laser lines individually from up to 33 feet away. In manual mode, when all laser lines are off, the indicators remain on.

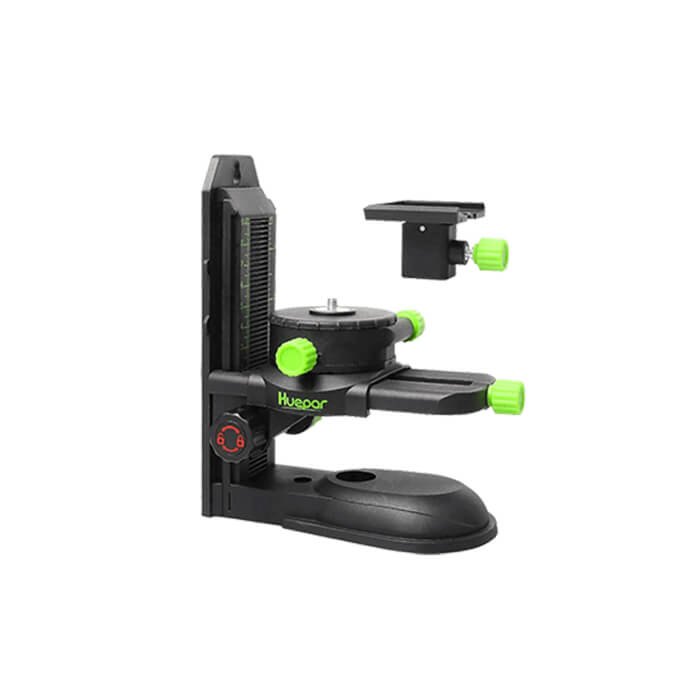

FINE-TUNING BRACKET

Strong Magnetic Bracket

The Huepar Laser Level Fine-tuning Bracket features four fine adjustment knobs, allowing precise adjustments: left and right within 1.2 inches (3cm), front and back within 2.2 inches (5.5cm), height within 3.6 inches (9cm), and 360° horizontal rotation. Graduations are marked in inches and centimeters for easy reading. A dedicated adapter enables the laser tool to be hung closer to the wall for more accurate work.

360° ADJUSTMENT

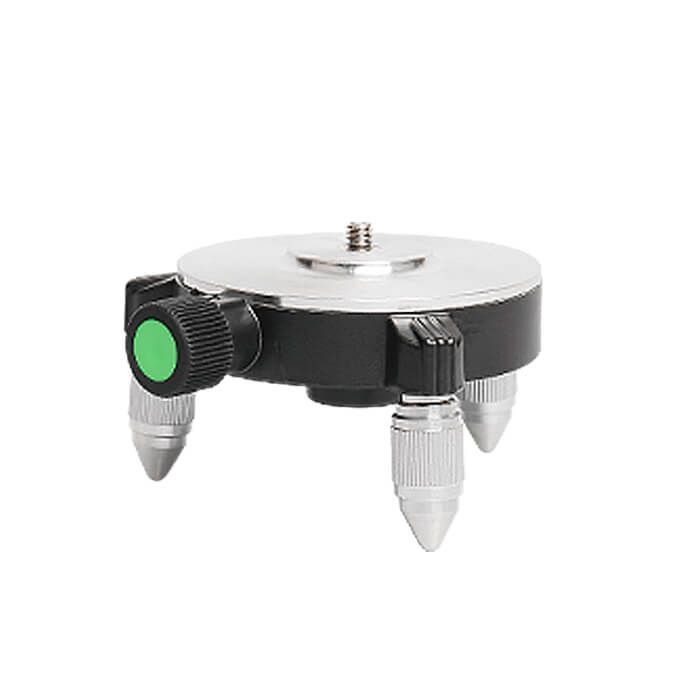

Metal Micro-Adjusting Base

The laser level is equipped with a metal micro-adjust fine-turning pivoting base, and the micro rotary knob allows for 360° adjustment. Users can adjust the height by rotating the three legs of the adapter, even on a tilted surface. The 5/8" threaded mount allows it to be attached to a tripod or other tools for use.

6-12 HOURS OF RUNNING TIME

Long Working Time

Huepar 904DG Laser Level employed a large capacity of 3.7V / 5200mAh Li-ion Battery and provides up to 6-12 hours of running time. The Li-ion Battery comes with a Type-C charging port that can be charged separately. When taking out the battery, this 4D laser level can be used at the job site by plugged in directly. The 16 lines laser level can also be charged by laptop, power bank, car charger, etc.

In the Box

Huepar 904CG
Huepar 904CG
× 1
Hard Carrying Bag
Hard Carrying Bag
× 1
Li-ion Battery
Li-ion Battery
× 1

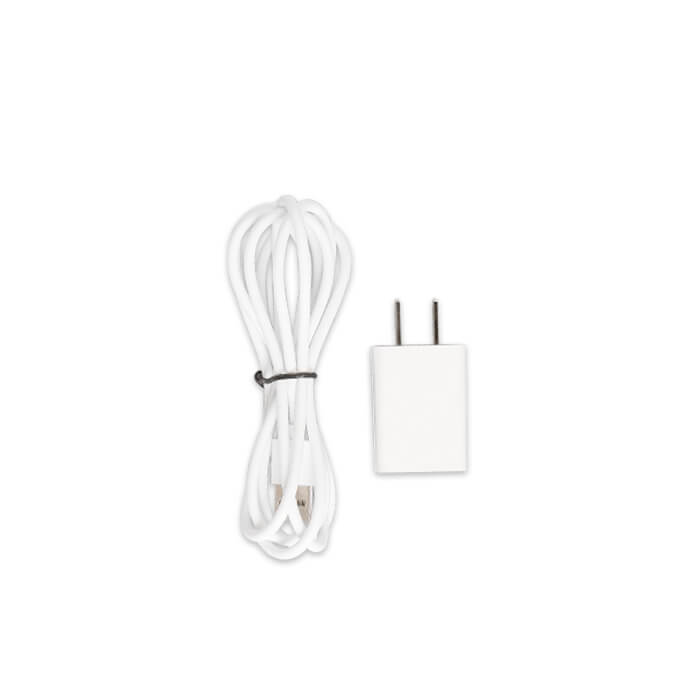

Type-C Power Cord
Type-C Power Cord
× 1
Magnetic Bracket
Magnetic Bracket
× 1
Remote Control
Remote Control
× 1
Magnetic Target
Magnetic Target
× 1
User Manual
User Manual
× 1

Specifications

Laser Info

Osram Green Beam
4 x 360° 16 Line Laser Levels
Wavelength 505-520nm
Class 2 (IEC/EN60825-1/2014)

Laser Accuracy

±3mm/10m
(±1/9 in. at 33 ft)

Leveling Range / Time

±4°
3 seconds

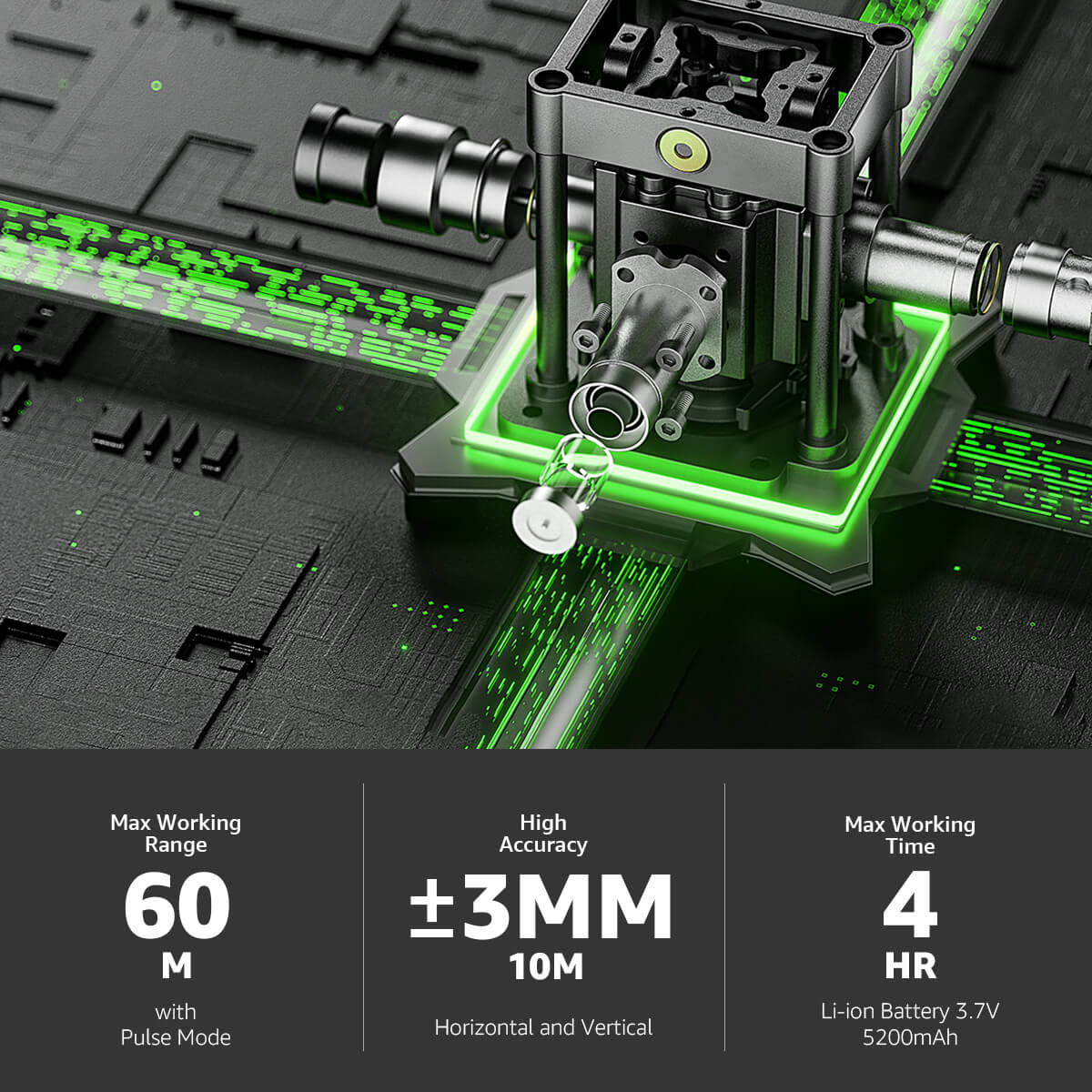

Working Range

Max Working Distance
40m/130ft
60m/197ft with Pulse Mode
Minimum Distance From The Ground
17mm
Minimum Distance From The Wall
9mm

Power System

Li-ion Battery 3.7V 5200mAh
Working Time 4 hrs
Charging Time 5 hrs
Type-C Charing Port

Durable Design

Working Temperature
-10℃ ~ 50℃ (14℉ ~ 122℉)
Storage Temperature
-20℃ ~ 70℃ (-4℉ ~ 158℉)
Main Material
ABS
IP Rating
IP54

Dimensions

Model Weight
678.1g (1.49 pounds)
Model Size
134 x 87 x 147mm
Item Weight
0.74 kg (‎‎‎‎‎1.63 pounds)
Package Dimensions
28 x 24 x 19cm
(‎‎‎‎‎10.9 x 9.6 x 7.6 inches)

Suitable Accessories

Mount Size
1/4''-20
Laser Detector
LR5RG
Tripod
LP36/TPD05/TPD14/TPD16
Base Adapter
AT2/PV3

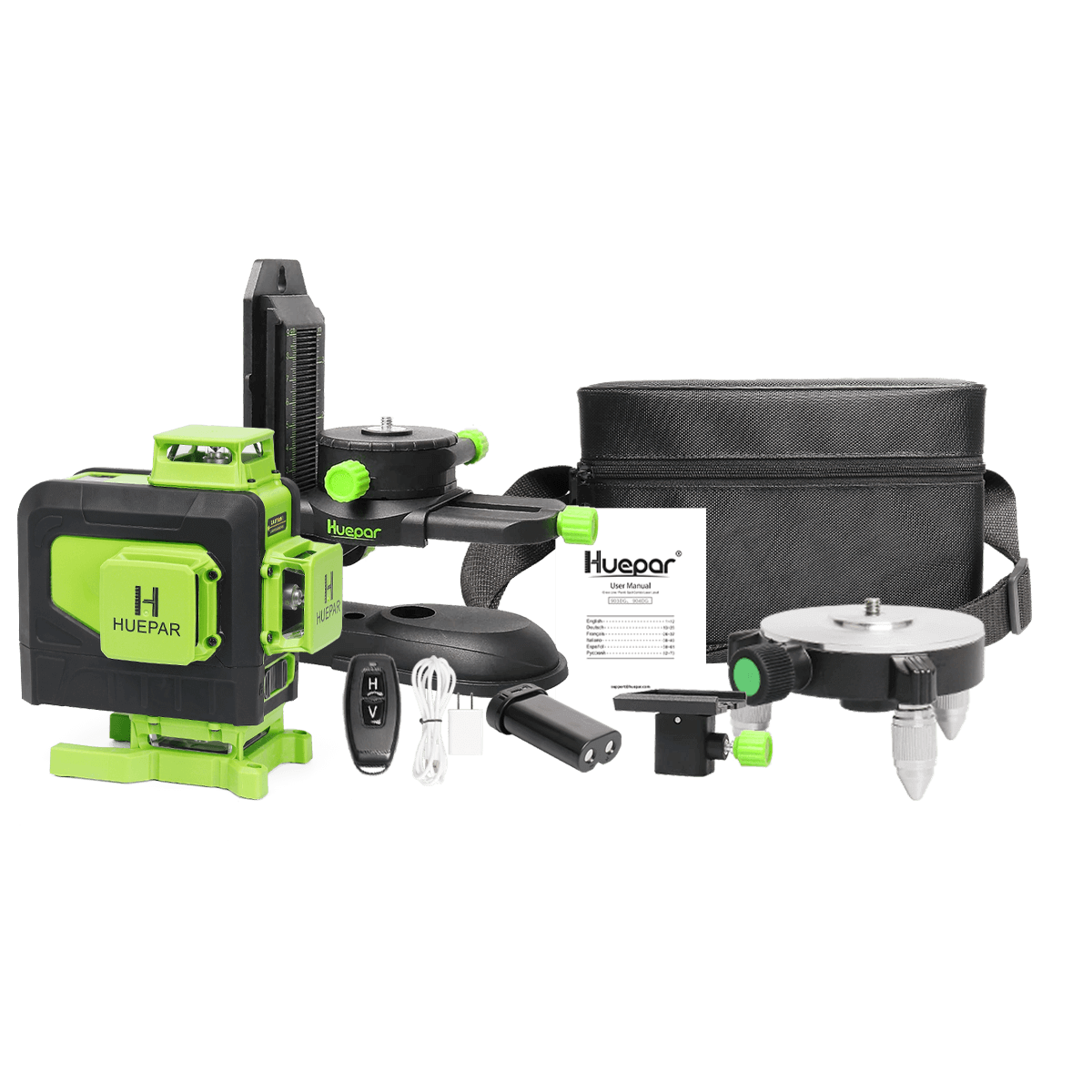

Packing List

1 x Huepar 904DG
1 x Rechargeable Li-ion Battery
1 x Remote control
1 x Fine-tuning Bracket
1 x Steel Sheet
1 x Micro-adjust base
1 x Multilingual User Manual
1 x Carrying Bag
1 x Type-C Power Cord

Find your perfect laser level

FAQ

What accessories can be used with the Huepar laser level?

Wall bracket, tripod, lifting table, target plate, adaptor.

When stray light appears from a laser, what could be the cause?

1. Dust inside the machine; 2. Dirty window cover glass; 3. Laser beams are reflected as stray lines by smooth surfaces

Can laser level be used outdoors?

The outdoor ambient light interference will affect visibility, even green light is recommended for indoor use.In the outdoor environment, even the green light visibility is only 3 meters, which is a normal phenomenon.

What kind of laser diode is used with 904DG?

It is Germany's Osram Green Diode.

What's the warranty?

After you receive the machine, scan the QR code on our carton, fill in the information and submit to get a 2-year warranty.At the same time, after you submit, we can also check your warranty information on the system.

What applications is the 904DG laser level suitable for?

The 904DG laser level is suitable for various applications, including indoor and outdoor construction, renovation, civil engineering, and pipeline installation, among others. It provides accurate horizontal and vertical reference lines to help you complete measurement tasks quickly and efficiently.

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Endorsed By

≥ 5,000 times Button test

All buttons are tested to ensure proper functionality.

≥ 5,000 times Switch test

The switch is tested repeatedly to ensure that the machine works stably.

≥ 1,000 times Charging test

Make sure the charging interface is working properly and not loose.

≥ 500 hours Working test

Laser tube aging test to ensure no brightness attenuation.

IP54 extreme environment test

Waterproof and dustproof, ensuring normal use in dusty environments.

Natural drop and shock test

Simulate natural drops while maintaining accuracy.

Simulated transportation

Simulate complex transportation environments to ensure unchanged accuracy.

High and low temperature test

Make sure the device can work normally between -10℃ ~ 50℃
