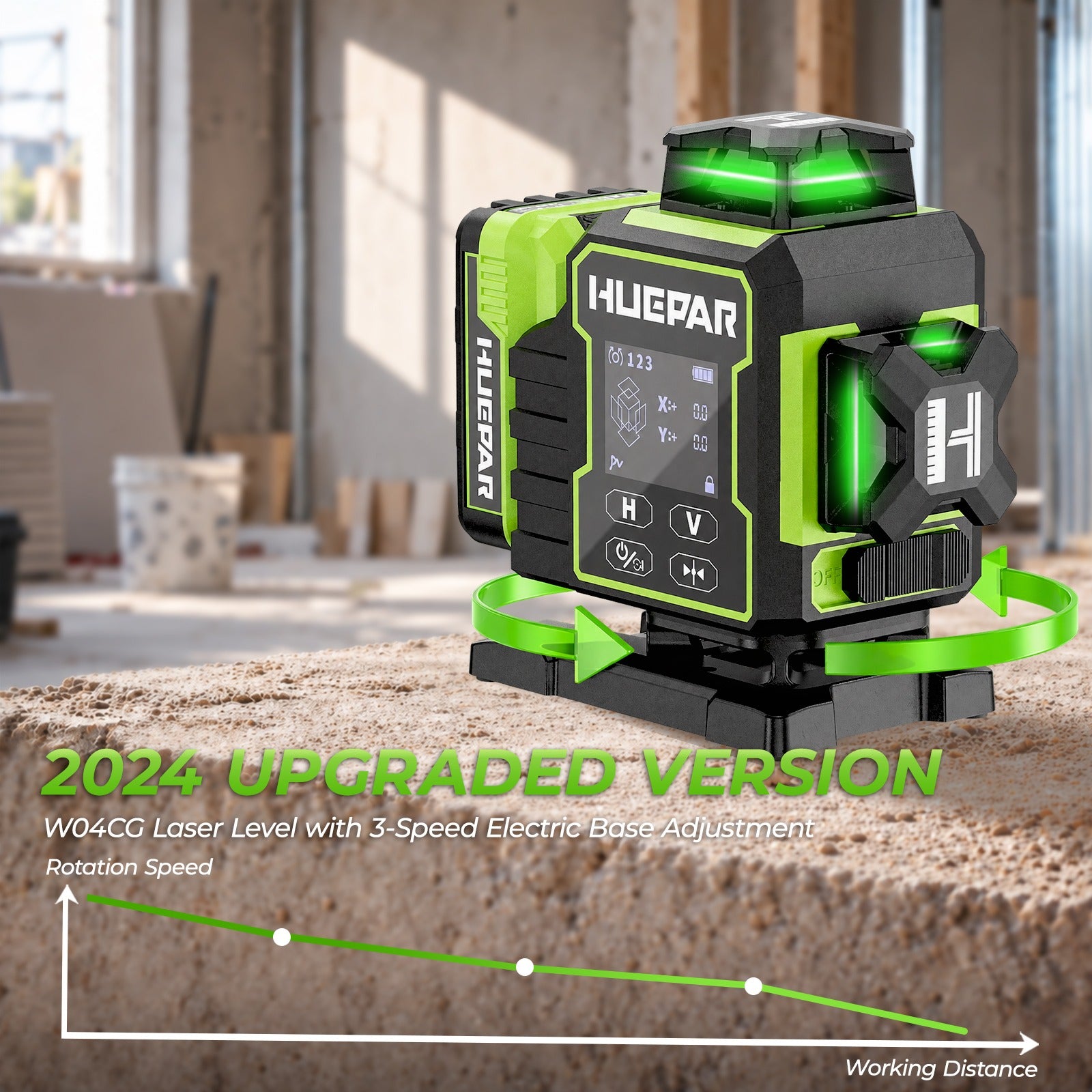

Huepar W04CG Laser Level

• HUEPAR DEDICATED RECEIVER- Huepar upgraded version LR-8RG receiver can ONLY be used with Huepar Line Laser Levels that feature Pulse Mode Function. Please pay attention to that this receiver can NOT be used with Rotary Laser Level. And the receiver can NOT be used with Huepr 9011G&9211G laser level. It is recommended to use in accompany with Huepar 902CG/901CG/8211G/BOX-1G/R/GF360G/R/HM03CG/S03CG/S04CG/S03DG/LS04CG/LS03CG/LS41G/621C/R/603CG/R/ B series and P series Laser Level, etc.

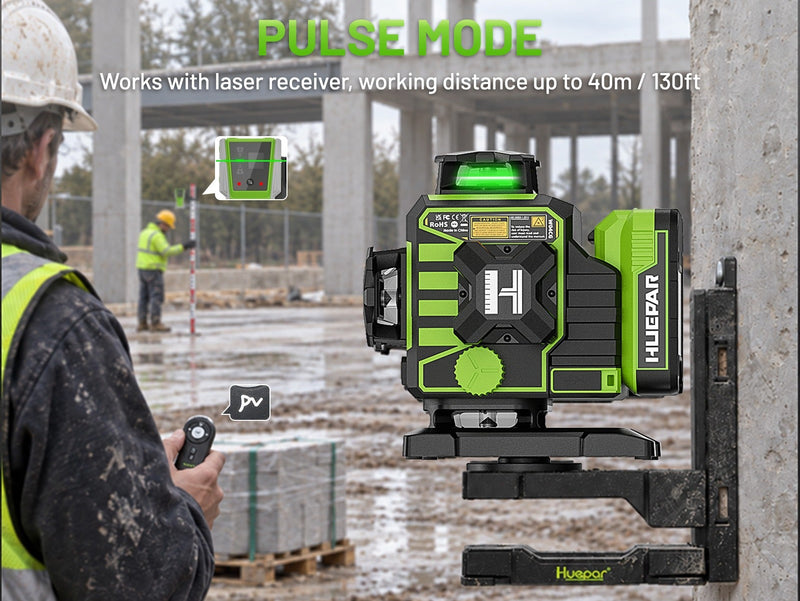

• AVAILABLE FOR RED AND GREEN PULSE LASER- It is necessary to Turn ON the Pulse Mode of the laser level when using with Huepar LR-8RG laser receiver. This receiver allows the detection of Red and Green pulse laser beams in difficult light conditions, distances up to 200ft (60m). Accuracy: high accuracy ±1.5mm, it easily directs the user to position the laser higher or lower on a grade rod. This ensures an accurate level of reading all the time.

• 90dB SOUND & DOBLE VISUAL SIGNALS: Beep sounds will remind you when you find the target. Devices that are to be used indoors can reduce the sound level as it may get too loud and irritate those around you. As for open spaces, the device needs to be loud for people to hear it over a distance. As for visual signals, the LED indicators are strong enough to be visible in broad daylight. Most of the work that you do would be in the daytime, and the strong sunlight may often cause a problem.

• CLEAR MULTI-SIDED READOUTS: With Two-SIDED display on the front and back of the receiver to offer easier visual readout.This will help you check the position easily. This unit is outfitted with a dual-sided Bubble Vial on both the front and top, in order to accurately determine the level. It comes with a double-sided magnet and ¼” threading .makes it easy to mount the detector to a rod or other target point. Also, they’re lightweight and will fit into your pocket.

• CLEAR MULTI-SIDED READOUTS: With Two-SIDED LED prompt on the front and back of the receiver to offer easier visual readout.This will help you check the position easily. This unit is outfitted with a dual-sided Bubble Vial on both the front and top, in order to accurately determine the level. It comes with a double-sided magnet and ¼” threading .makes it easy to mount the detector to a rod or other target point. Also, they’re lightweight and will fit into your pocket.

!Please note NOT compatible with Rotary Laser Level

!This detector is only compatible with Huepar Line Laser Levels that feature Pulse Mode Function

!If you are not sure whether it suits for your laser tool, please confirm with us before you place an order

Move the Detector as the Direction Shown

Datum Lower than Laser Beam – Move Up

Datum Higher than Laser Beam – Move Down

When Datum in Line with Laser Beam – The LED Indicator Light is Displayed in Green

Buzzer Remind

 You could reduce the sound level when you use indoors as it may get too loud and irritate those around you. As for open spaces, the device needs to be loud for people to hear it over a distance.

A slower beeping tone signals – Move Up

A fast beeping tone signals – Move Down

Heavy-duty Clamp & Double-Sided Magnet

 The Laser Detector comes complete with two AA batteries (for more than 12 working hours of continuous use), as well as a compatible rod mounting bracket. Secure the receiver to the clamp using the ¼-inch thread mounting nut and then clamp the receiver to a grade rod or wooden pole.

•  Quick Release Plate with 1/4"-20 Screw Mount: With quick release plate, a 1/4"-20 UNC can be converted to 5/8"-11 UNF Adapter Nut, can work with Laser Levels, Digital Cameras, Lenses, most Camcorders, Binocular, Telescopes etc.

• 3-Way Flexible Pan Head: Huepar tpd14 provides 360 degree Rotation Panoramas, allows you to rotate at any angle horizontally and vertically. The tripod head's movement is controlled by a single positioning arm and a separate knob which allows for 90°vertical tilts. The Built-in Bubble View Level can help you adjust the angle and accuracy.

• Adjustable 4-Section Legs and Center Column: Four-section legs height adjustment buckle, extended center column to meet your different needs. 0.48m-1.43m Height Range, 10kg load capacity. Net weight only 1.16kg, Light-weight but durable. Easy to carry and transport in a storage bag.

• Rotatable Rubber Feet & Multi-function hook: Large rotatable rubber feet help stand on the floor firmly and adjust angles and directions for different floor conditions and usage. Multi-function hook allows you to hang additional weight for increased stability. Suitable for outdoor or complex terrain work and shooting.

• High Quality Camera Tripod: The stable tripod laser level stand for camera is made of anodized aluminum tube (max size 23mm) and ABS environmental plastic, very sturdy. The center column and center braces are made of aluminum for extra stability. If the Huepar tripod has any problem, please feel free to contact us for good solution. Become a member through the product registration, you can enjoy longer and better product warranty.

Huepar Travel Camera Tripod is a multifunctional tripod with many advantages. Laser level stand can work with Laser Level tools, digital Cameras, Lenses, most Camcorders, Binocular, telescopes etc.

Huepar TPD14 TripodSpecification:

• Screw Mount Size: 1/4"-20, 5/8"-11
• Leg Sections: 4 Sections
• Leg Locking Type: Pull Buckle
• Head Type: Ball Head
• Pan Range: 360°
• Tilt Range: 180°
• Lateral Tilt: 90°
• Folded Length: 19.7" (50 cm)
• Min Height: 18.6" (48 cm)
• Max Height: 56.3" (143 cm)

• Quick shoe type head, 1/4 "& 5/8 female screw hole installed
• Easy operation 1 handle 3 WAY head
• Lever type leg lock and elevator adjust length
• Rubber anti-slip feet & level
• Load capacity up to 10 KG, with weight hook included

The laser level stand/ tripod can be used with most Huepar Laser Level. Such as: 901CG, 902CG, 9011G, 9211G, 9300G, BOX-1G/R, GF360G/R, 8211G, 602CG/R, 622CG/R, 621CG/R, 603CG/R, B03CG, B02CG, B21CG, 503CG, 503DG, 5011G. And also can be used with the Laser Distance Meter: LM120A, LM100A, LM90A, LM200C, LM90C.

Easy operation 1 handle 3 WAY head

If you loosen the handle and loosen it, you can adjust it to vertical 90 ° horizontal 360 °. The quick shoe plate can also be tilted by 90 °. During operation, the tripod does not move, you can easily check the position.

The 3-Way Flexible Pan Head Provides 360 degree Rotation Panoramas. The Built-in Bubble View Level can help you adjust the angle and accuracy.

Rubber anti-slip feet & level

Since the ground plane is an anti-skid rubber feet with adjustable angle, and the tripod body also has level, you can fine-tune it according to adjustable rubber feet and level even if it is placed on uneven ground .

Quick shoe type head, 1/4 "& 5/8 female screw hole installed

We adopt a quick shoe that can be installed and removed with a single touch on the panhead part.

Package contents

• Tripod body X1

• 5/8 inch Conversion Screw X 1

• Storage Box X1

• ARBITRARILY ADJUSTED TELESCOPIC ROD: Huepar LP36 Mounting Pole, an ideal telescopic rod for any worksite using tools that can be easily placed at any height between the floor and ceiling. Including four telescopic rods and one tail rod, Tail Rod Section with Arbitrary telescopic rod section can telescope out another 53cm/20.87". This laser tripod Huepar LP36 has 3.7m/12.18ft when fully assembled with all sections and both end parts. The graduations are marked in black on the yellow pole in inches and centimeters.

• MULTI-FUNCTION FINE-TUNING BRACKET: Mounting Bracket with 1/4"-20 Male Thread and 5/8"-11 Thread Adapter, compatible with most line lasers and rotary lasers. The bracket can be placed at any height of the rod according to your needs. With a Height Fine-tuning knob, the fine-tuning range is 7cm. Can be adjusted within 5cm in depth so it can be used with any instrument that measures 6.5-11.5 from the back.

• HIGH STABILITY & SPRING-LOADED BASE: Laser Mounting Pole features a spring-loaded base for quick and easy tension setup. 5cm powerful spring provides a greater adjustable range and a more stable fixed requirement. The foot and head plate have a non-slip surface, and the larger force area strengthens the fixing of the end both of foot and head. Sturdy foot pedals make operation easier. Sturdy foot pedals make operation easier.

• STABLE TRIPOD BASE WITH BUILT-IN BUBBLE: Two-section legs height adjustment buckle to meet your different needs, height adjustable range 0.48m-0.84m. While a screw clamp on the side of the head stabilizes the pole so that it won’t shift. Additionally, there is a small bubble level embedded in the head to ensure that your measurements will be as accurate as possible.

• EASY TO ASSEMBLE AND TRANSPORT: The rotation of rod sections sets positions easily. The soft carry bag makes transportation easier and the storage length of 80cm is convenient for you to put in the car trunk. Package included: 4 x Telescopic Rod Section, 1 x Tail Rod (with Spring-Loaded Base, Arbitrary Telescopic Rod Section, and Floor Skid Face), 1 x Top Ceiling Skid Plate, 1 x Bracket (with 1/4"-20 Male Thread), 1 x 5/8"-11 Screw Adapter, 1 x Tripod, 1 x Transport Bag.

Huepar LP36 Laser Telescoping Pole Laser Tripod Specification:

• Rod Sections: 4 telescopic rod + 1 Tail rod
• Graduations: cm / inch
• Rod Wall Thickness: 10mm
• Connection interface between rods: 5/8"
• Height of rod section: 60cm/23.62"
• Height of arbitrary telescopic rod: 0-53cm /0-20.87"
• Max height after fully assembled: 3.7m / 12.18ft.
• Laser Tripod height: 48-84cm / 18.90-33.07"
• Bracket Mount Size:1/4"-20 & 5/8"-11
• The length of the male thread to the side of the bracket: 11.5-6.5cm / 4.53-2.56"
• Bracket Height Fine-tuning Range: 7cm / 2.76"
• Material: Aluminum with a polyurethane coating
• Gross Weight: 3.02kg / 6.66lb
• Storage length: 80cm / 31.5"

Huepar LP36 3.7m Laser Mounting Pole

• Huepar LP36 3.7m tripod laser pole is designed to work with your line or rotary lasers to help you level structures, level grade job sites, and prep farmland.
• Huepar LP36 multi-purpose support rod made of aluminum with a polyurethane coating for durability. Easy to read, Graduations are marked in black on the yellow pole in inches and centimeters.
• An ideal telescopic rod for any worksite using tools that can be easily placed at any height between the floor and ceiling
• The Tail Rod Section with Arbitrary telescopic rod section can telescope out another 53cm.
• It has 3.7m/12.18ft when fully assembled with all sections and both end parts.

Package Included:

• 4 x Telescopic Rod Section
• 1 x Tail Rod (with Spring-Loaded Base, Arbitrary Telescopic Rod Section, and Floor Skid Face)
• 1 x Top Ceiling Skid Plate
• 1 x Height Adjustable Bracket (with 1/4"-20 Male Thread)
• 1 x 5/8"-11 Screw Adapter
• 1 x Adjustable Stable Laser Tripod
• 1 x Soft Carry Bag
